Description
Specifications
- Product Line: Driveline & Axles
- Category Name: Wheel Fasteners

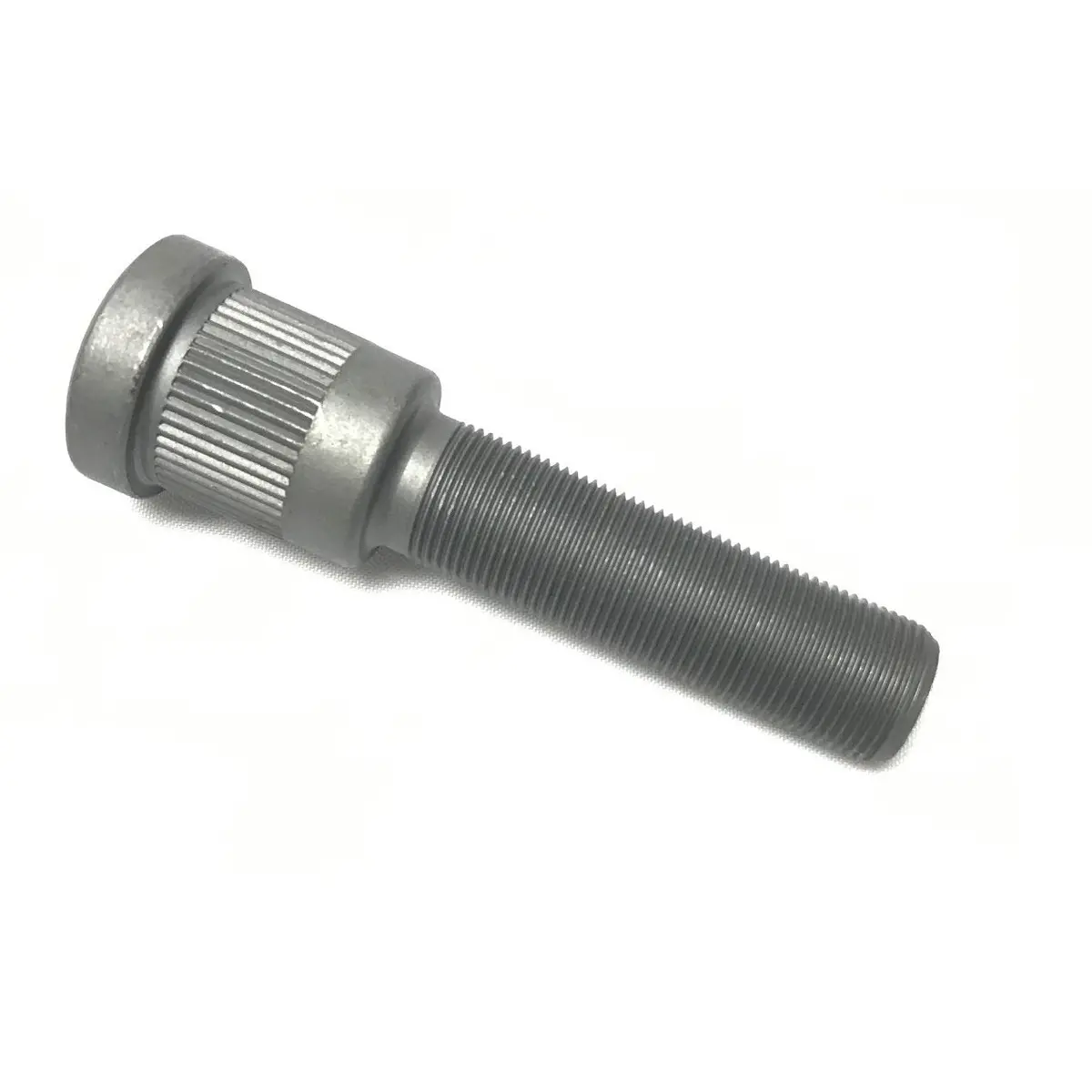

- Part Type: Wheel Stud
- Alternate Part Name: Metric Serrated Drive Wheel Stud, Metric Serrated Drive Wheel Studs
- OEM Part Number: E8986
- Application Type: Heavy Duty Trucks, Semi-Trucks
- Stud Type: Headed
- Material: Carbon Alloy Steel
- Body Diameter (G): 1.219 in.
- Body Length (E): 1.000 in.
- Head Diameter (F): 1.590 in.
- Head Style: Round
- Head Thickness: 0.328 in.
- Length from Under Head (B): 4-3/8 in.
- Serration: Serrated
- Serration Diameter: 1.262 in.
- Serration Length (D): 0.437 in.
- Thread (A): M22 x 1.5
- Thread Diameter (H): 22.0 mm
- Thread Direction: RH (Right Hand)
- Thread Length (C): 2.620 in.
- Thread Size: M22 X 1.5-6g
- Threads: 1.5 per mm
- DIN / ISO Grade: 10.9 (metric equivalent of Grade 8)
- Net Weight: 1.05 lb.
Intended Application
- Heavy Duty Trucks, Buses & Trailers. Fit into wheel hubs to secure rims under high torque and load conditions.
Cross-references
- 131721, 1681048, 2016172, 388986, 451, E-8986, E8986, M3677, W1205
