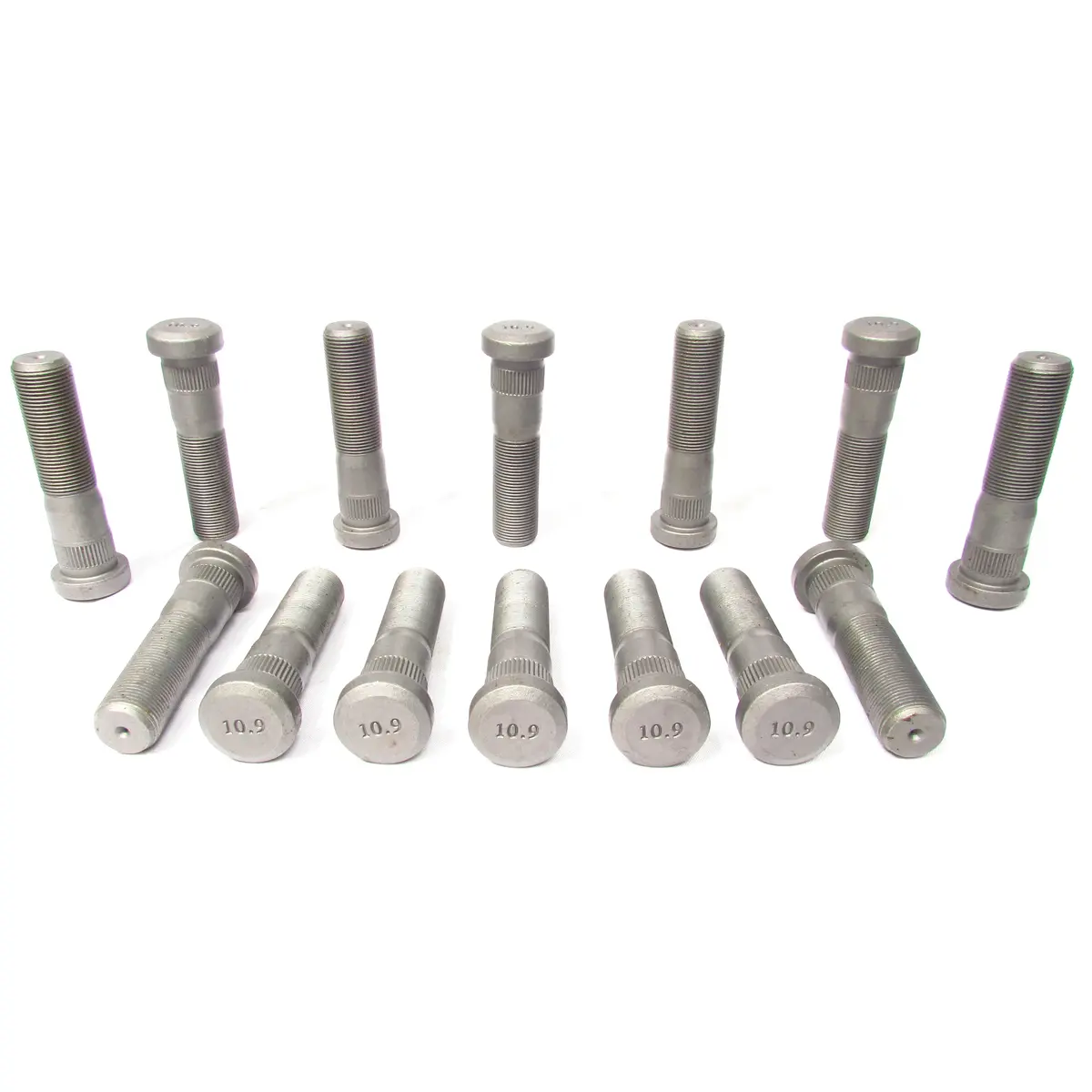

M22×1.5 Serrated Drive Wheel Stud – 0.900″ Base Diameter × 3-21/32″ Length – Replaces E5997 – 10-Pack

Description

Specifications

• Product Line: Driveline & Axles
• Category Name: Wheel Fasteners
• Part Type: Wheel Stud
• Alternate Part Name: Metric Serrated Drive Wheel Studs, Metric Clipped Head Studs
• OEM Part Number: E5997
• Application Type: Semi-Trucks, Heavy Duty Trucks
• Stud Type: Headed
• Material: Carbon Alloy Steel
• Body Diameter (G): 0,900 in.
• Body Length (E): 0.880 in.
• Head Diameter (F): 1.260 in.
• Head Style: Round
• Head Thickness: 0.390 in.
• Length from Under Head (B): 3-5/8 in.
• Serration: Serrated
• Serration Diameter: 0.950 in.
• Serration Length (D): 0.390 in.
• Thread (A): M22 x 1.5
• Thread Diameter (H): 22.0 mm
• Thread Direction: RH (Right Hand)
• Thread Length (C): 2.450 in.
• Thread Size: M22 X 1.5-6g
• Threads: 1.5 per mm
• DIN / ISO Grade: 10.9 (metric equivalent of Grade 8)
• Net Weight: 0.73 lb.

Intended Application

• Wheel End Hardware. Designed to be used with an F286669 nut.

Cross-references

• 106216, 131581, 15427002, 2016132, 3018503, 335, 385997, 501285, E5997 E-5997, E5997 E5997, E5997. E-5997, E5997. E5997, IT5997, M3201, R005997, E-5997, E5997
