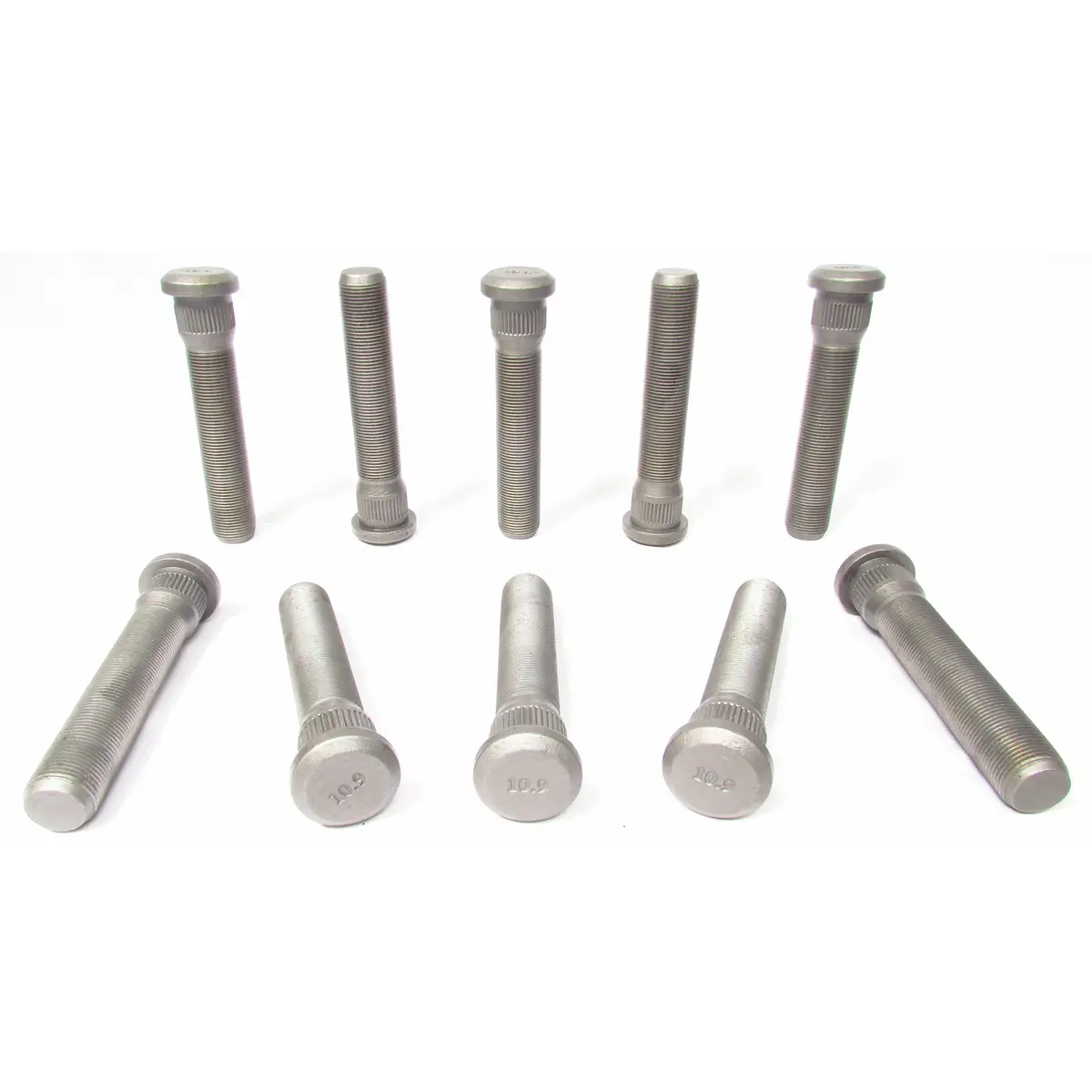

M22×1.5 Serrated Drive Wheel Stud – 0.975″ Base Diameter × 4-25/32″ Length – OEM Equivalent E6034 – 10-Pack

Description

Specifications

• Product Line: Driveline & Axles
• Category Name: Wheel Fasteners
• Part Type: Wheel Stud
• Alternate Part Name: Metric Serrated Drive Wheel Studs, Metric Clipped Head Studs
• OEM Part Number: E6034
• Application Type: Semi-Trucks, Heavy Duty Trucks
• Stud Type: Headed
• Material: Carbon Alloy Steel
• Body Diameter (G): 0.975 in.
• Body Length (E): 0.720 in.
• Head Diameter (F): 1.310 in.
• Head Style: Round
• Head Thickness: 0.360 in.
• Length from Under Head (B): 4-3/4 in.
• Serration: Serrated
• Serration Diameter: 1.015 in.
• Serration Length (D): 0.410 in.
• Thread (A): M22 x 1.5
• Thread Diameter (H): 22.0 mm
• Thread Direction: RH (Right Hand)
• Thread Length (C): 3.470 in.
• Thread Size: M22 X 1.5-6g
• Threads: 1.5 per mm
• DIN / ISO Grade: 10.9 (metric equivalent of Grade 8)
• Net Weight: 0.89 lb.

Intended Application

• Heavy Duty Trucks, Buses & Trailers. Fit into wheel hubs to secure rims under high torque and load conditions.

Cross-references

• 101160, 131559, 131572, 131572P, 131572Q, 15428003, 160, 2016157, 2016157WE, 6034, E-6034, E6034, M3217, R006034, W1325
