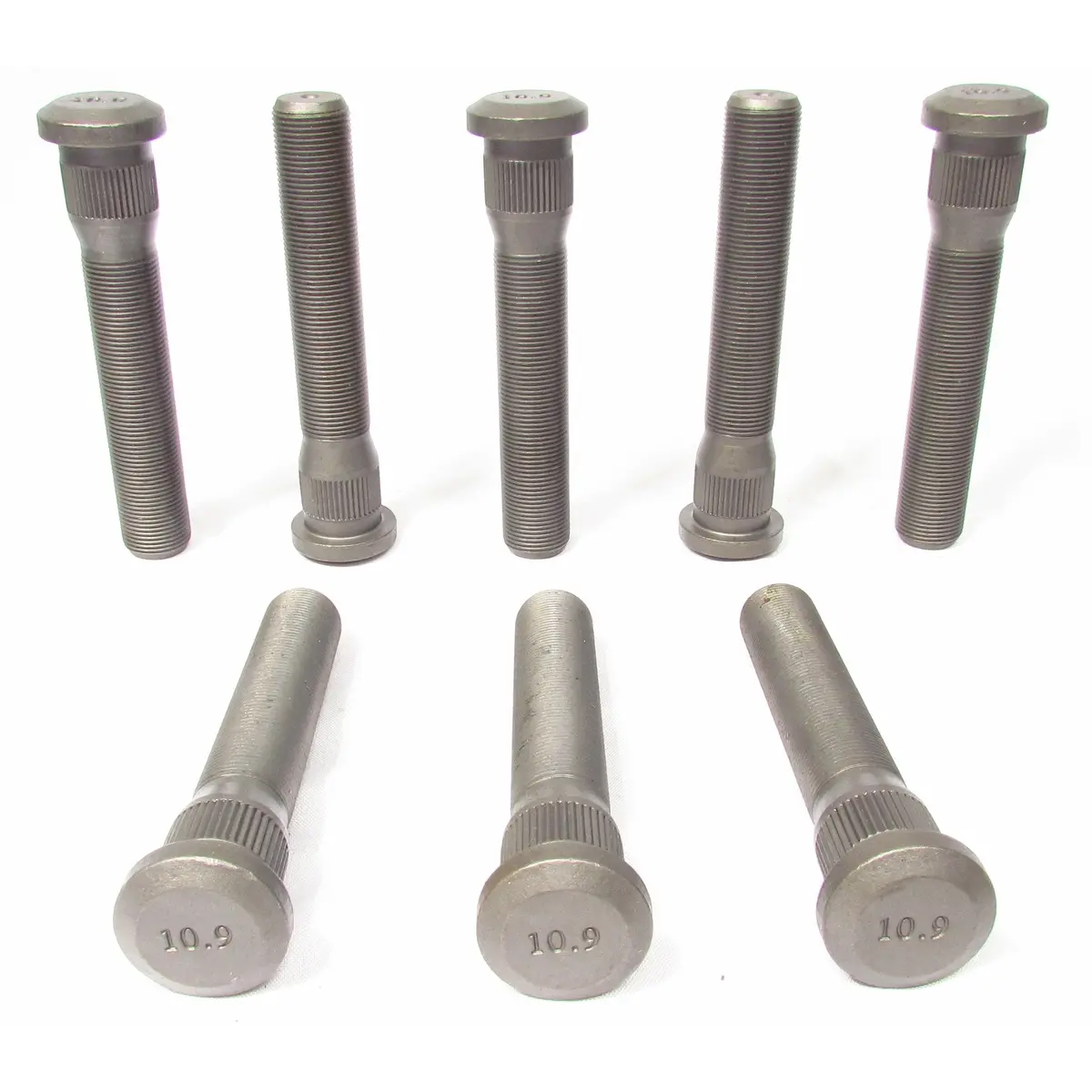

M22×1.5 Serrated Drive Wheel Stud – 0.975″ Base Diameter × 4″ Length – Replaces E8981 – 10-Pack

Description

Specifications

• Product Line: Driveline & Axles
• Category Name: Wheel Fasteners
• Part Type: Wheel Stud
• Alternate Part Name: Metric Serrated Drive Wheel Studs, Metric Clipped Head Studs
• OEM Part Number: E8981
• Application Type: Semi-Trucks, Heavy Duty Trucks
• Stud Type: Headed
• Material: Carbon Alloy Steel
• Body Diameter (G): 0.975 in.
• Body Length (E): 0.730 in.
• Head Diameter (F): 1.310 in.
• Head Style: Round
• Head Thickness: 0.310 in.
• Length from Under Head (B): 4 in.
• Serration: Serrated
• Serration Diameter: 1.015 in.
• Serration Length (D): 0.500 in.
• Thread (A): M22 x 1.5
• Thread Diameter (H): 22.0 mm
• Thread Direction: RH (Right Hand)
• Thread Length (C): 3.910 in.
• Thread Size: M22 X 1.5-6g
• Threads: 1.5 per mm
• DIN / ISO Grade: 10.9 (metric equivalent of Grade 8)
• Net Weight: 0.79 lb.

Intended Application

• Heavy Duty Trucks, Buses & Trailers. Fit into wheel hubs to secure rims under high torque and load conditions.

Cross-references

• 131567, 1681043, 2010358C1, 2016152, 2016152P2, 2016152P5, 2016252, 423, E-8981, E8981, M3666, M3667, SZAW021R, W1164, W1400
