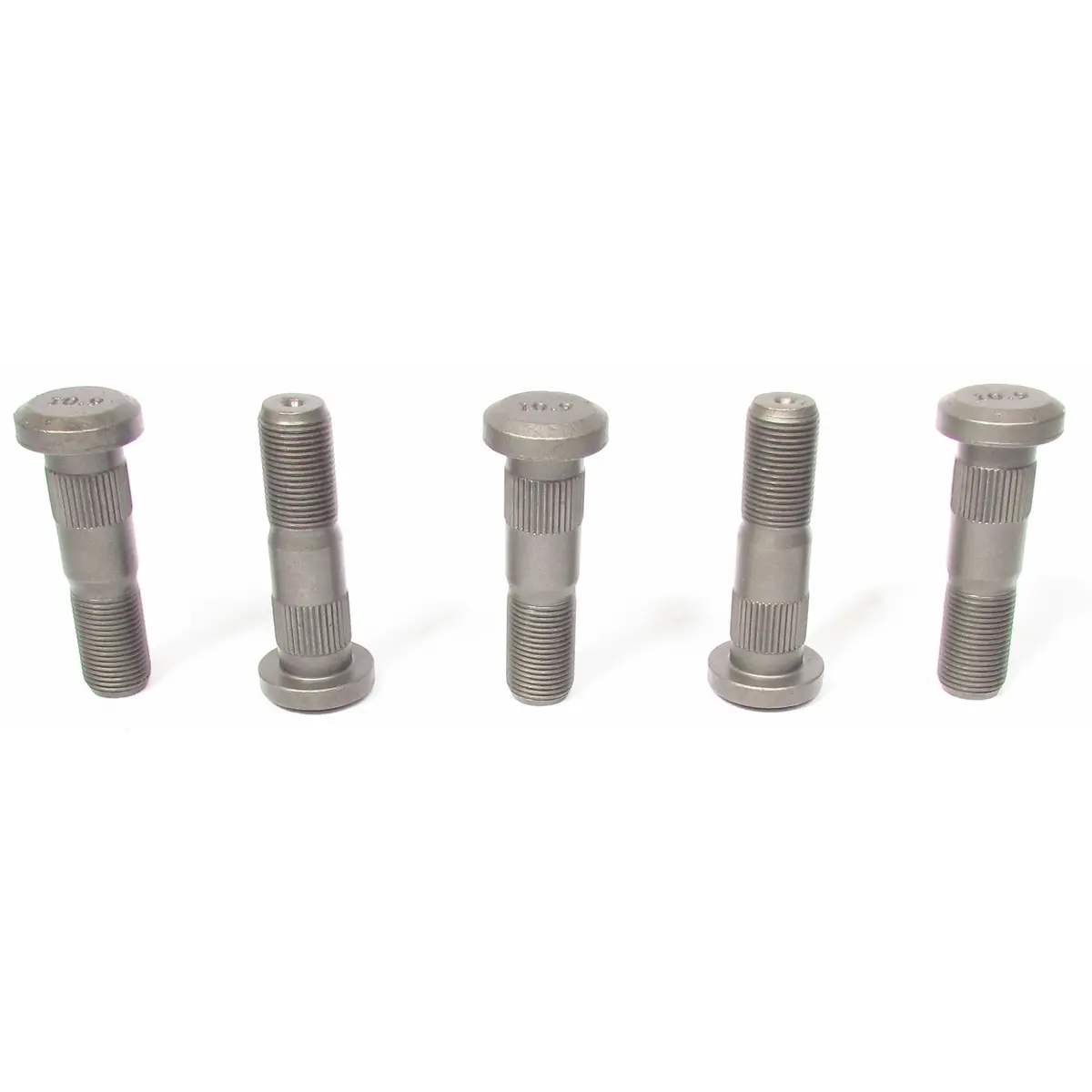

3/4″-16 Serrated Drive Wheel Stud – 0.785″ Base Diameter × 2-7/8″ Length – Dual-Side E4967L/E4967R Fit – 10-Pack

Description

Specifications

• Product Line: Driveline & Axles
• Category Name: Wheel Fasteners
• Part Type: Wheel Stud
• Alternate Part Name: Serrated Drive Wheel Studs, Steer Axle Wheel Stud, Left Hand Wheel Stud, Serrated Drive Wheel Studs, Steer Axle Wheel Stud, Right Hand Wheel Stud
• OEM Part Number: E4967L, E4967R
• Application Type: Semi-Trucks, Heavy Duty Trucks
• Stud Type: Headed
• Material: Carbon Alloy Steel
• Body Diameter (G): 0.785 in.
• Body Length (E): 1.500 in.
• Head Diameter (F): 1.280 in.
• Head Style: Round
• Head Thickness: 0.310 in.
• Length from Under Head (B): 2-7/8 in.
• Serration: Serrated
• Serration Diameter: 0.820 in.
• Serration Length (D): 0.500 in.
• Thread (A): 3/4 in.-16
• Thread Diameter (H): 0.750 in.
• Thread Direction: LH (Left Hand), RH (Right Hand)
• Thread Length (C): 0.970 in.
• Thread Size: 3/4-16 UNF-2A
• Threads: 16 per inch
• DIN / ISO Grade: 10.9 (metric equivalent of Grade 8)
• Net Weight: 0.46 lb.

Intended Application

• Compatible with TK, TKL, RL, RN, RQ, TKN, TL (also Eaton)
• Compatible with some cast drums on TK, TKL, use E-4968-R/L
