Dana Spicer 5-677X U-Joint Designed for 1760 Series Driveshafts

Description

Genuine Spicer 1760 Series Half-Round U-Joint. Original equipment 10 Series kit for half-round 1760 applications. Includes necessary hardware and straps for professional installation. Features a greaseable design for maximum driveline life in heavy vehicles. Dana-backed quality ensures safety and high torque capacity.
Specifications

• Product Line: Driveline & Axles
• Category Name: Driveline Components
• Part Type: Universal Joint
• Alternate Part Name: U Joint
• Application Type: Semi-Trucks, Heavy Duty Trucks
• Series: 1760
• Universal Joint Type: Half Round Style
• VMRS Code: 24002046
• Material: Steel

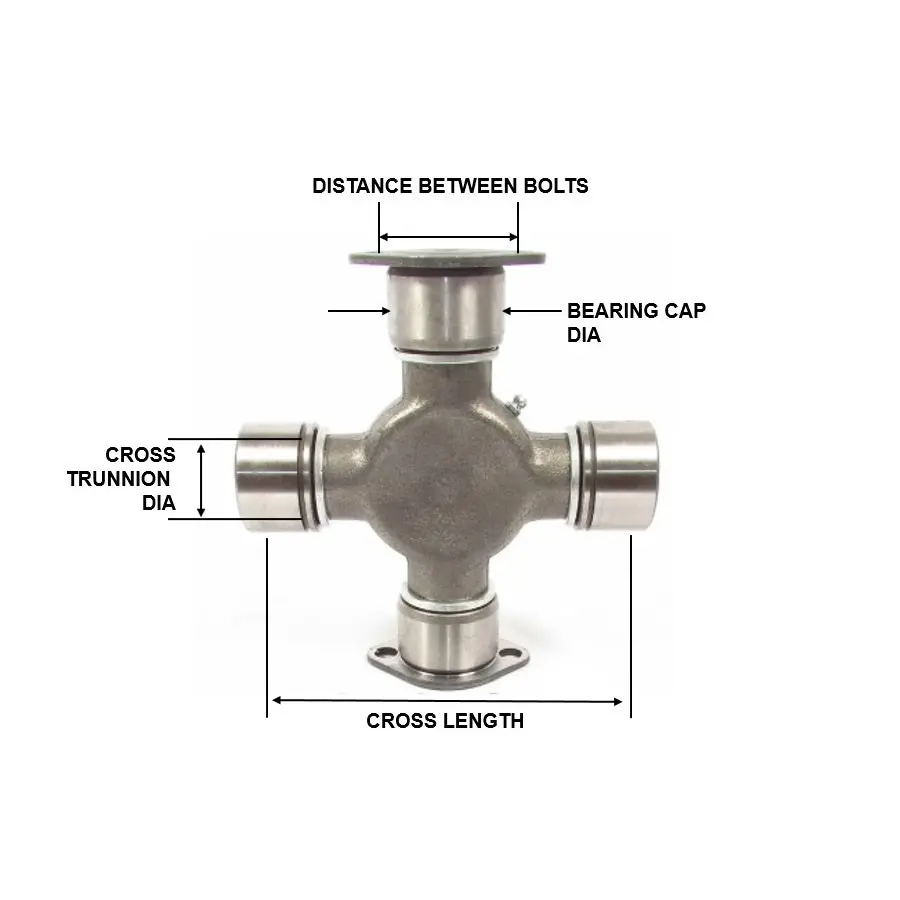

• Bearing Cap Diameter: 1.938 in.
• Cross Length: 6.541 in.
• Distance Between Bolt Holes: 2.437 in.
• Trunnion Diameter: 1.298 in.
• Grease Fitting Location: Side of Cross
• Greaseable: Yes
• Net Weight: 9.79 lb.

Bill Of Material

• 1 U Joint
• 4 Drive Shaft Bolt
• 2 Bearing Cap Assy
• 4 Drive Shaft Bolt
• 2 Strap

Intended Application

• Commercial vehicles using 1760 series driveshafts with “Half Round” type yokes

Cross-references

• 2104-5677X, 21045677X, 407HR, 5-469X, 5-677X, 5469X, 5677X, 60677, 60677GXL, 60677Q, 64071, CP677X, E677X, EM69170, JUJ-6917, JUJ6917, M677X, US677X
