Description
Spicer Select 1810 Series Universal Joint. Cost-effective aftermarket repair for 1810 series shafts. Backed by Dana’s engineering standards for reliable performance. Built with 1.938″ bearing caps to ensure a perfect fit into Spicer yokes. Provides smooth rotation and reduces driveline vibration in commercial trucks.
Specifications
- Product Line: Driveline & Axles
- Category Name: Driveline Components
- Part Type: Universal Joint
- Alternate Part Name: U Joint
- Application Type: Semi-Trucks, Heavy Duty Trucks
- Series: 1810
- Universal Joint Type: Bearing Plate Style
- VMRS Code: 24002046
- Material: Steel

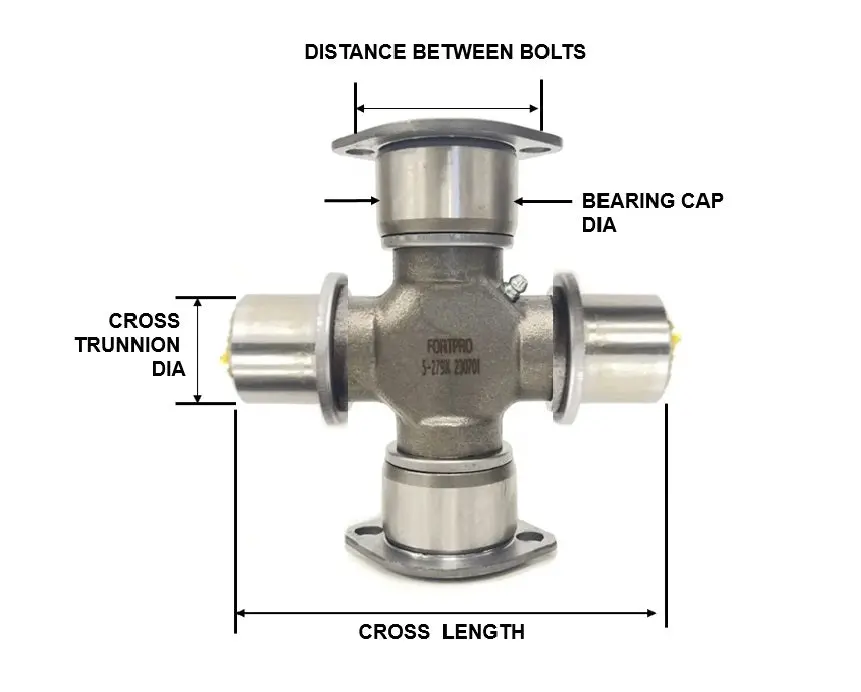

- Bearing Cap Diameter: 1.938 in.
- Cross Length: 7.092 in.
- Distance Between Bolt Holes: 2.437 in.
- Trunnion Diameter: 1.363 in.
- Grease Fitting Location: Side of Cross
- Greaseable: Yes
- Net Weight: 11.07 lb.
Bill Of Material
- 1 U Joint
- 8 Drive Shaft Bolt
- 4 Bearing Cap Assy
- 4 Strap
Intended Application
- Heavy commercial vehicles using 1810 series Full Round type driveshafts.
Cross-references
- 15-281X, 15281X, 2104-5281X, 21045281X, 22910C91, 25-281X, 25281X, 27074363, 321SF171, 35MU218, 5-281X, 5281X, 6191703, 701639, CM1810, CM5281X, CP281X, D2HZ4635A, E281X, EM69300, JUJ-6930, JUJ6930, US281X, 6-0281PQ, 60281PQ, 752.5281X, 7525281X, FLT15281X, M281X
