Description

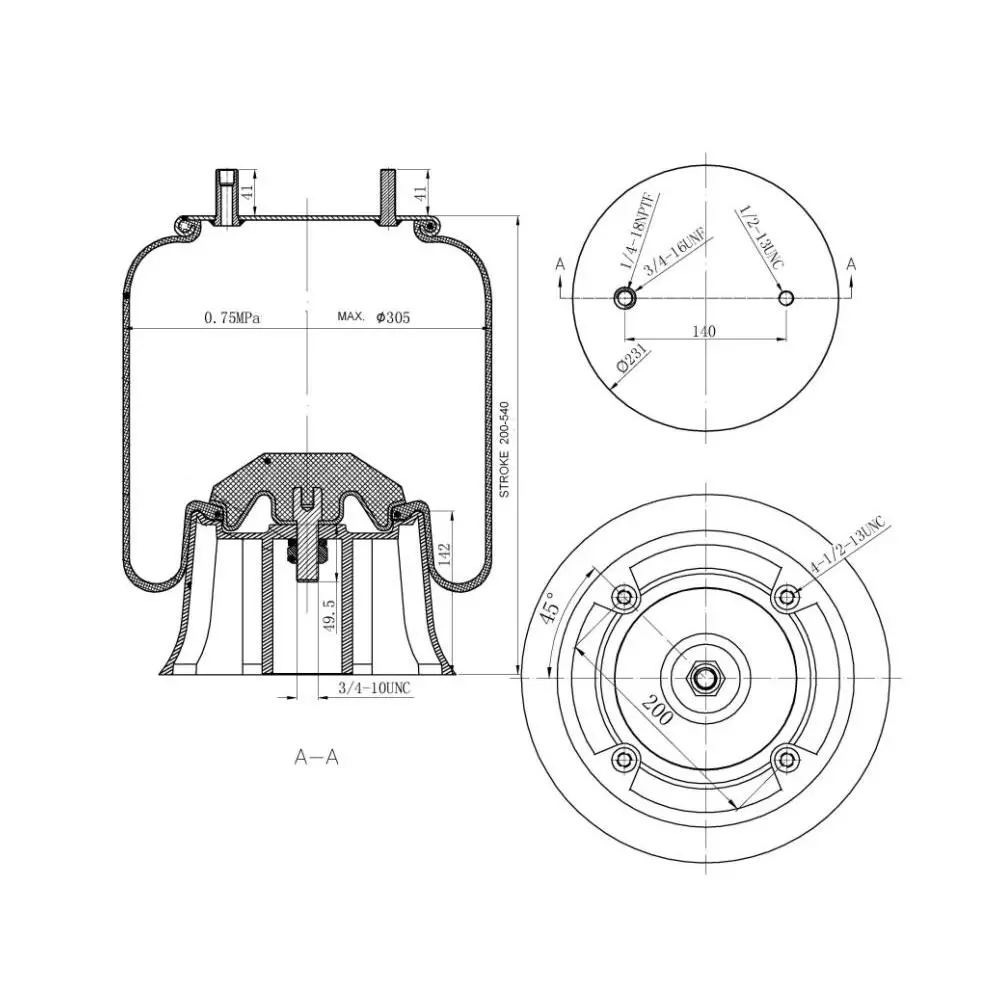

Specifications
- Product Line: Suspension
- Category Name: Air Springs and Bags
- Part Type: Rolling Lobe Air Spring
- Alternate Part Name: Air Ride Spring, Pneumatic Spring, Rolling Lobe Air Spring, Air Suspension Bag, Reversible Sleeve Air Spring, Suspension Air Bag, Air Bag Suspension
- OEM Part Number: W01-358-9082
- Application Type: Heavy Duty Trucks, Semi-Trucks
- VMRS Code: 016-008-000
- Material: Fiber reinforced rubber bellows
- Air Inlet Inside Thread: 1/4-18 NPT
- Air Inlet Outside Thread: 3/4 16 UNF
- Body Diameter: 10.12 in.
- Bottom Plate Alignment: 45 deg.
- Bottom Plate Diameter: 10.25 in.
- Bottom Plate Stud: 1/2-13 UNC
- Mounting Stud Configuration – Bottom: 4
- Mounting Stud Configuration – Top: 2
- Piston Height: 5.68 in.
- Piston Material Type: Composite
- Top Plate Diameter: 9.00 in.
- Top Plate Stud: 1/2-13 UNC
- Air Spring Type: 1T Reversible Sleeve
- Collapsed Length: 7.90 in.
- Extended Length: 20.75 in.
- Net Weight: 19.80 lb.
Intended Application
- Compatible with Hendrickson Canada, Kelderman, Hutchens, Holland (Neway), Reyco, R & S Truck & Body, Ridewell Air Suspension Systems — for Rear Axle and Trailer Air Suspension Applications used on Freightliner, Peterbilt, Kenworth, Mack, and International Trucks.
Cross-references
- 0646, 1R11917, 1R12092, 1R12093, 1R12134, 1R12509, 1R12677, 1R13097, 1T15K1, 1T15K1M6, 1T15M6, 3048200003, 3090044200, 3090557006, 3090557027, 3090557031, 3090557075, 3130491, 3529082, 365147, 517096C9, 517096C91, 517559C9, 566CT64269, 57QL310, 64269, 646, 90557027, 9082, 9084, 91016P310, 963001, 963003, AB1DK23K9082, AS
