Description

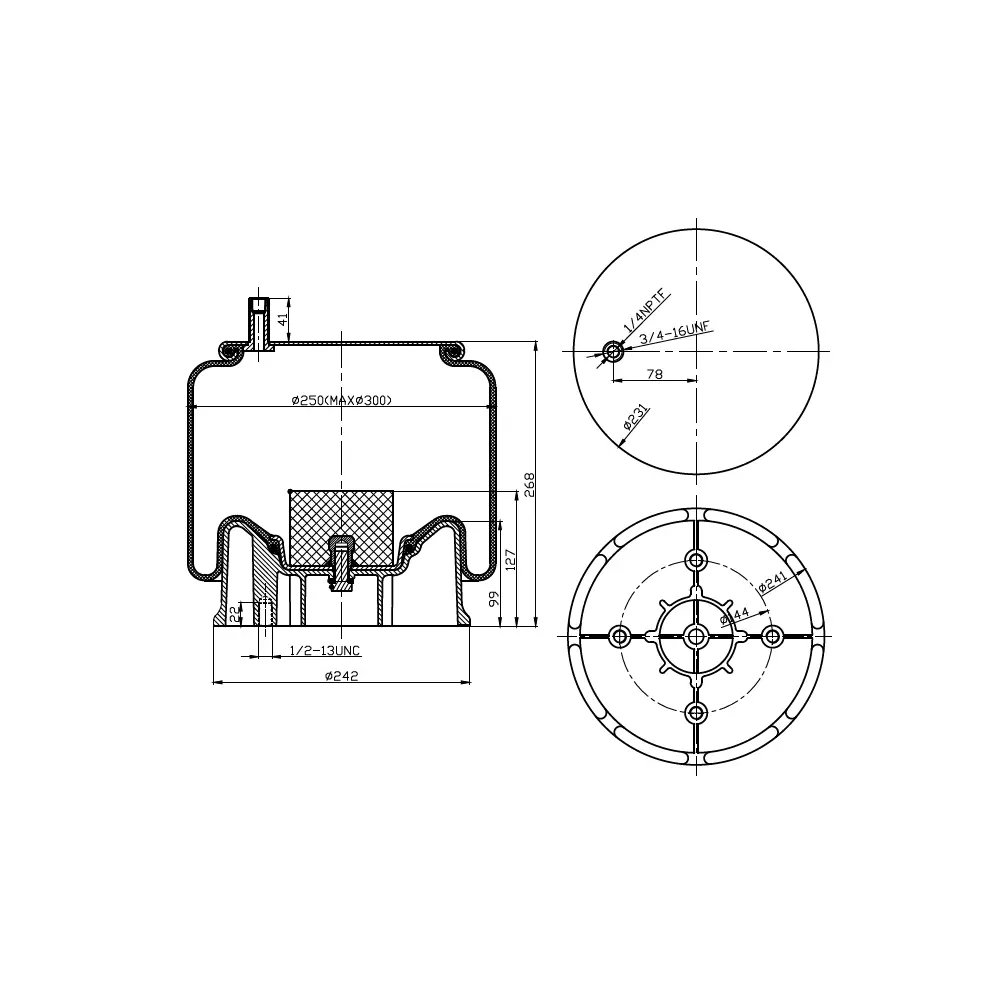

Specifications
- Product Line: Suspension
- Category Name: Air Springs and Bags
- Part Type: Rolling Lobe Air Spring
- Alternate Part Name: Rolling Lobe Air Spring, Air Ride Spring, Pneumatic Spring, Air Suspension Bag, Reversible Sleeve Air Spring, Suspension Air Bag, Air Bag Suspension
- OEM Part Number: W01-358-9270
- Application Type: Semi-Trucks, Heavy Duty Trucks
- VMRS Code: 016-008-000
- Material: Fiber reinforced rubber bellows
- Air Inlet Inside Thread: 1/4-18 NPT
- Air Inlet Outside Thread: 3/4 16 UNF
- Bottom Plate Alignment: Parallel
- Bottom Plate Diameter: 9.50 in.
- Bottom Plate Stud: 1/2-13 UNC
- Mounting Stud Configuration – Bottom: 4
- Mounting Stud Configuration – Top: 1
- Piston Height: 3.90 in.
- Piston Material Type: Aluminum
- Top Plate Diameter: 9.00 in.
- Air Spring Type: 1T Reversible Sleeve
- Collapsed Length: 5.60 in.
- Extended Length: 16.90 in.
- Net Weight: 22.25 lb.
Intended Application
- Compatible with heavy-duty trucks and trailers equipped with Hendrickson Turner Air Suspension System.
Cross-references
- 1003589270C, 1R12225, 1R13077, 1R13102, 1R13119, 3529270, 566CT64287, 64287, 910135S433, 9270, AB1DK23I9270, AB1DK25BS1015, AS0084, AS9270, C20010, M3542, S20010, S25559, W013589270, FS9270, MAF9270, W01-358-9270
