Fortpro Peterbilt Truck Air Spring – Fits 9069 and 1R12-069 (F245587)

Description

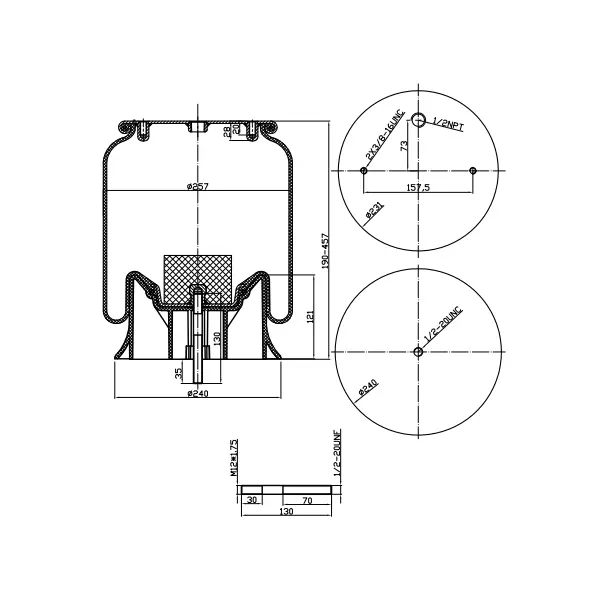

Specifications

• Product Line: Suspension
• Category Name: Air Springs and Bags
• Part Type: Rolling Lobe Air Spring
• Alternate Part Name: Rolling Lobe Air Spring, Reversible Sleeve Air Spring, Air Suspension Bag, Suspension Air Bag, Pneumatic Spring, Air Ride Spring, Air Bag Suspension
• OEM Part Number: W01-358-9069
• Application Type: Heavy Duty Trucks, Semi-Trucks
• VMRS Code: 016-008-000
• Material: Fiber reinforced rubber bellows
• Air Inlet Inside Thread: 1/2 NPT
• Body Diameter: 10.12 in.
• Bottom Plate Alignment: Parallel
• Bottom Plate Diameter: 9.50 in.
• Bottom Plate Stud: 1/2-13 UNC
• Mounting Stud Configuration – Bottom: 1
• Mounting Stud Configuration – Top: 2
• Piston Height: 4.75 in.
• Piston Material Type: Aluminum
• Top Plate Diameter: 9.00 in.
• Top Plate Stud: 3/8-16 UNC
• Air Spring Type: 1T Reversible Sleeve
• Collapsed Length: 7.50 in.
• Extended Length: 18.00 in.
• Net Weight: 15.80 lb.

Intended Application

• Peterbilt Heavy-Duty Vehicles with Air Trac Suspension

Cross-references

• 0301649, 0302038, 0302456, 0304759, 0307112, 1003589069C, 1R12069, 1R12669, 1R12676, 1T15M4, 301649, 302038, 302456, 304759, 3057000709, 306746, 307112, 310042, 3130497, 3529069, 554764C1, 566CT64274, 566ER9069, 64274, 9069, 91014P312, AB1DK23I9069, AB1DK23IA312, AS0077, AS9069, CS112069, FAS-0685, FAS0685, GY1R12069, M3512, S13031, W013589069, FS9069, MAF9069, W01-358-9069
