Description
Specifications
- Product Line: Suspension
- Category Name: Air Springs and Bags
- Part Type: Rolling Lobe Air Spring
- Alternate Part Name: Rolling Lobe Air Spring, Air Ride Spring, Pneumatic Spring, Reversible Sleeve Air Spring, Air Suspension Bag, Air Bag Suspension, Suspension Air Bag
- OEM Part Number: W01-358-9422
- Application Type: Heavy Duty Trucks, Semi-Trucks
- VMRS Code: 016-008-000
- Material: Fiber reinforced rubber bellows

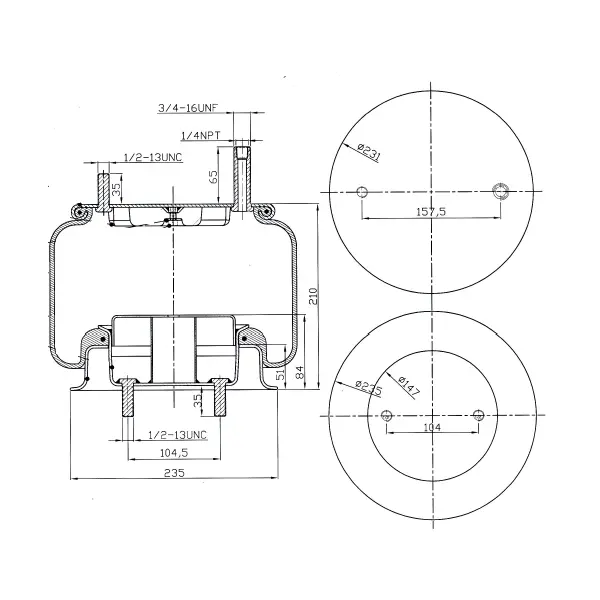

- Air Inlet Inside Thread: 1/4-18 NPT
- Air Inlet Outside Thread: 3/4 16 UNF
- Body Diameter: 9.12 in.
- Bottom Plate Alignment: Parallel
- Bottom Plate Diameter: 9.50 in.
- Bottom Plate Stud: 1/2-13 UNC
- Mounting Stud Configuration – Bottom: 2
- Mounting Stud Configuration – Top: 2
- Piston Height: 2.80 in.
- Piston Material Type: Composite
- Top Plate Diameter: 9.00 in.
- Top Plate Stud: 1/2-13 UNC
- Air Spring Type: 1T Reversible Sleeve
- Collapsed Length: 3.80 in.
- Extended Length: 13.30 in.
- Net Weight: 13.00 lb.
Intended Application
- Compatible with Kenworth Airglide 100 Rear Air Suspension – older version without bracket.
Cross-references
- 1R11028, 1T15KW15, 1T15L2, 1T15T3, 3130496, 3529422, 3529422AG, 554762C1, 566CT64255, 64255, 9205, 9422, 9614, 9615, 9912P314, AB1DK20D9422, AS0017, CS111028, FAS-0689, FAS0689, FS9422, GY1R11028, K30314, K30315, K3036, M3525, S13032, W013589422, W01-358-9422
