Description
Specifications
- Product Line: Suspension
- Category Name: Air Springs and Bags
- Part Type: Rolling Lobe Air Spring
- Alternate Part Name: Air Bag Suspension, Suspension Air Bag, Pneumatic Spring, Air Ride Spring, Rolling Lobe Air Spring, Reversible Sleeve Air Spring, Air Suspension Bag
- OEM Part Number: W01-358-8708
- Application Type: Heavy Duty Trucks, Semi-Trucks
- VMRS Code: 016-008-000
- Material: Fiber reinforced rubber bellows

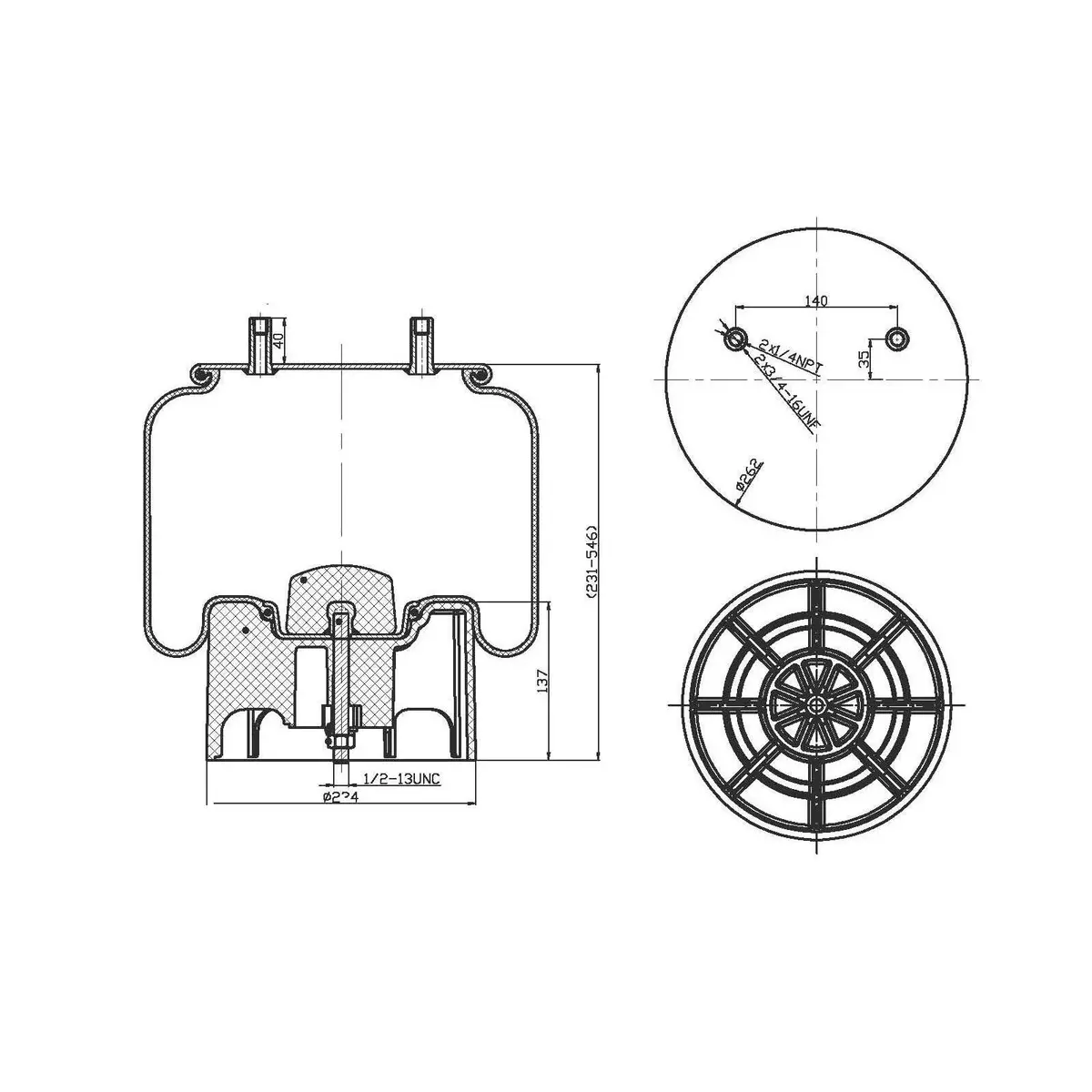

- Air Inlet Inside Thread: 1/4-18 NPT
- Air Inlet Outside Thread: 3/4 16 UNF
- Body Diameter: 10.62 in.
- Bottom Plate Alignment: Parallel
- Bottom Plate Diameter: 8.80 in.
- Bottom Plate Stud: 1/2-13 UNC
- Mounting Stud Configuration – Bottom: 1
- Mounting Stud Configuration – Top: 2
- Piston Height: 5.38 in.
- Piston Material Type: Composite
- Top Plate Diameter: 10.30 in.
- Air Spring Type: 1T Reversible Sleeve
- Collapsed Length: 9.10 in.
- Extended Length: 19.00 in.
- Net Weight: 20.15 lb.
Intended Application
- Compatible with Hendrickson Trailers equipped with HKA200 Special Rear Air Suspension System
Cross-references
- 101016S526, 1R13128, 1R13177, 3528708, 566CT64638, 64638, 8708, AB1DK25E8708, AS8708, FAS-0578, FAS0578, FS8708, S21966, W013588708, MAF8708, W01-358-8708
