Fortpro Mack Cab Air Spring – Replacement for 9375 and 1R12-404 (F245581)

Description

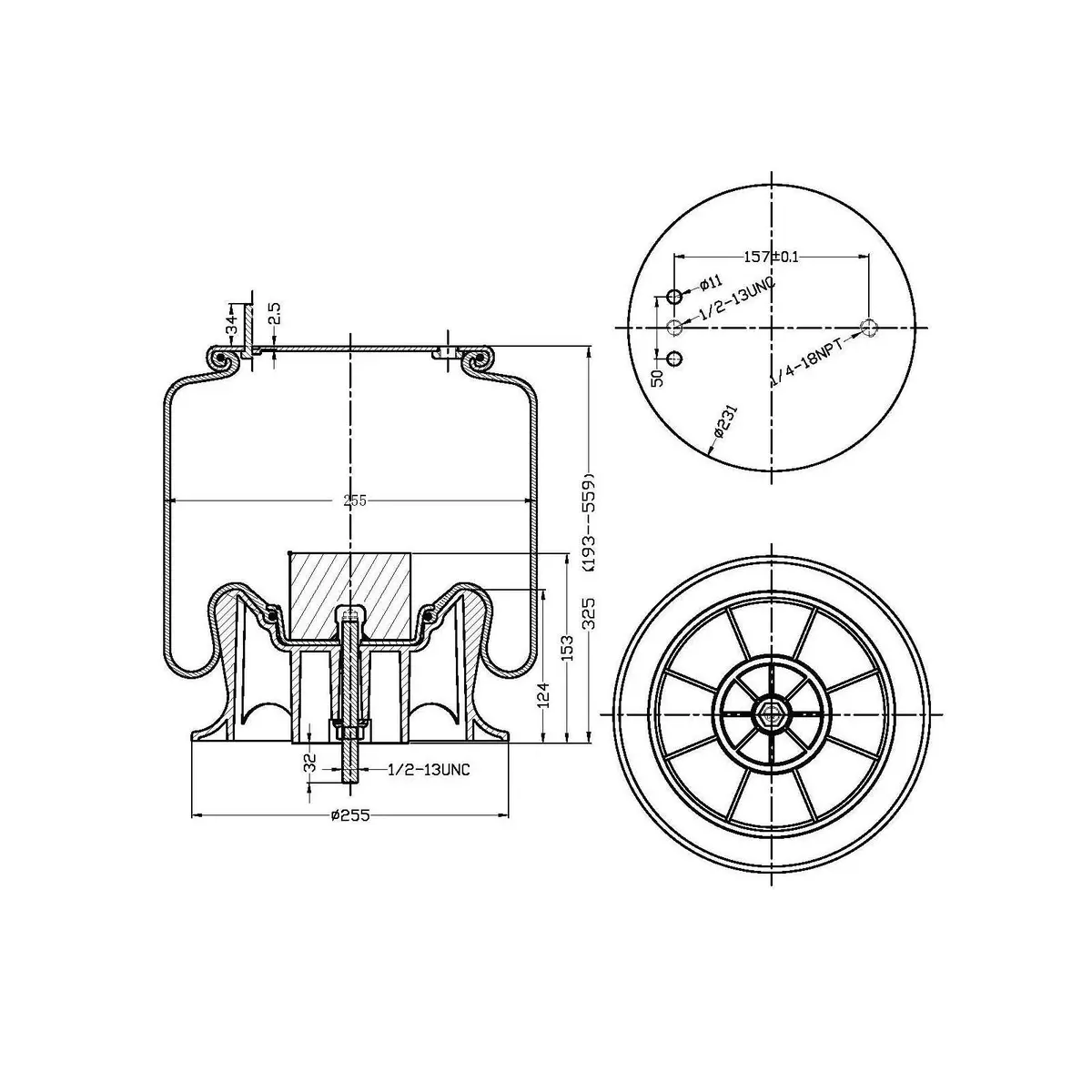

Specifications

• Product Line: Suspension
• Category Name: Air Springs and Bags
• Part Type: Rolling Lobe Air Spring
• Alternate Part Name: Air Suspension Bag, Air Bag Suspension, Rolling Lobe Air Spring, Reversible Sleeve Air Spring, Air Ride Spring, Suspension Air Bag, Pneumatic Spring
• OEM Part Number: W01-358-9375
• Application Type: Heavy Duty Trucks, Semi-Trucks
• VMRS Code: 016-008-000
• Material: Fiber reinforced rubber bellows
• Air Inlet Inside Thread: 1/4-18 NPT
• Body Diameter: 10.12 in.
• Bottom Plate Alignment: Parallel
• Bottom Plate Diameter: 10.00 in.
• Bottom Plate Stud: 1/2-13 UNC
• Mounting Stud Configuration – Bottom: 1
• Mounting Stud Configuration – Top: 2
• Piston Height: 4.85 in.
• Piston Material Type: Composite
• Top Plate Diameter: 9.00 in.
• Top Plate Stud: 1/2-13 UNC
• Air Spring Type: 1T Reversible Sleeve
• Collapsed Length: 8.10 in.
• Extended Length: 22.00 in.
• Net Weight: 16.40 lb.

Intended Application

• Compatible with Mack (CH612, CH613, MR688S, MR688P) Hendrickson (Rear Air Suspension System).

Cross-references

• 1R121076, 1R12404, 1R12488, 1S12030, 1S12031, 3529375, 364QS27, 50899001, 50899002, 50899002L, 566CT68616, 57QL414M, 68616, 910175P451, 910185P451(BK), 9375, AB1DK23M9375, AS9375, EAS9375, FS9375, MAF9375, W013589375, 910185P451
