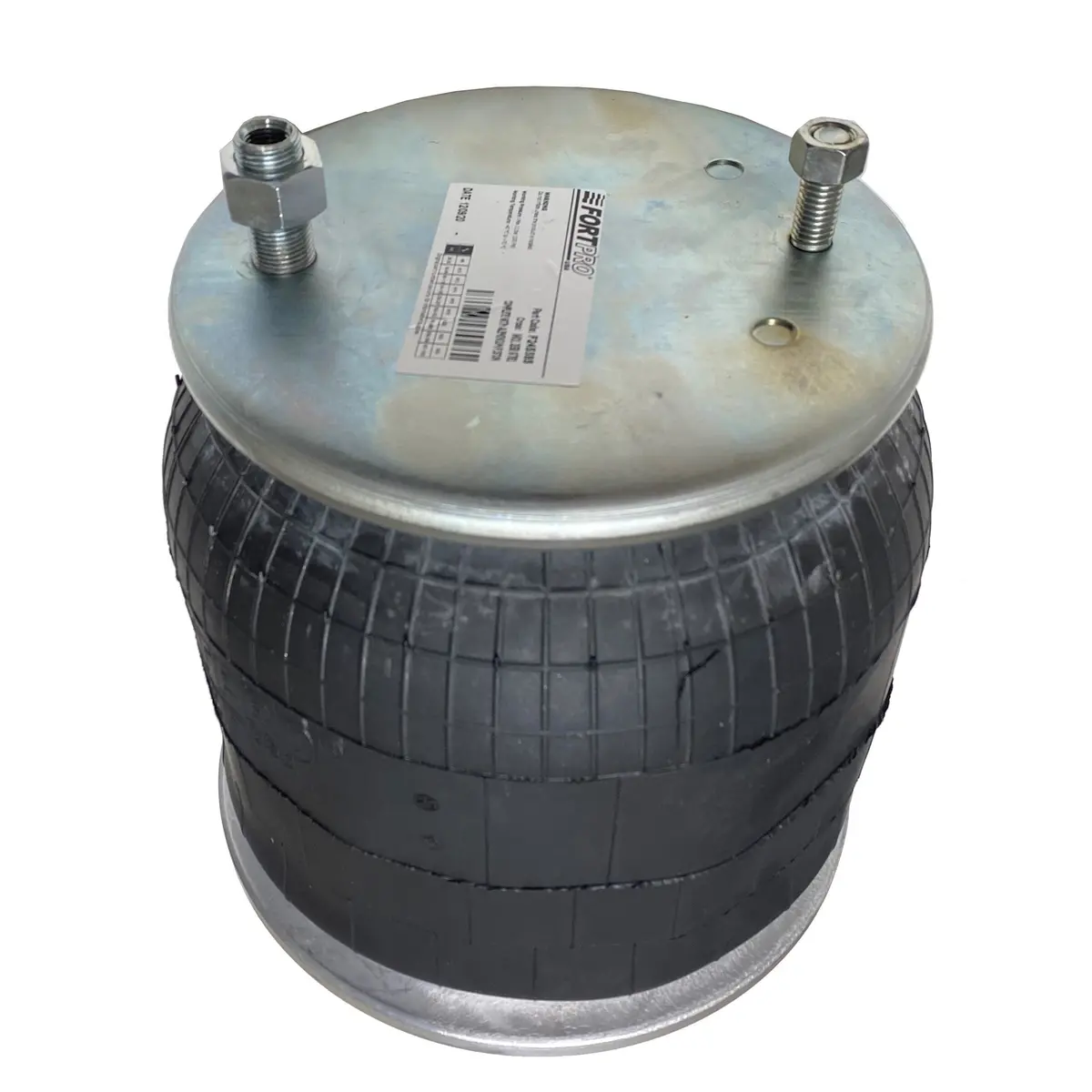

Fortpro Freightliner Truck Air Spring – Replaces 9781 and 1R12-603 (F245585)

Description

Specifications

• Product Line: Suspension
• Category Name: Air Springs and Bags
• Part Type: Rolling Lobe Air Spring
• Alternate Part Name: Air Bag Suspension, Air Suspension Bag, Reversible Sleeve Air Spring, Rolling Lobe Air Spring, Air Ride Spring, Pneumatic Spring, Suspension Air Bag
• OEM Part Number: W01-358-9781
• Application Type: Semi-Trucks, Heavy Duty Trucks
• VMRS Code: 016-008-000
• Material: Fiber reinforced rubber bellows
• Air Inlet Inside Thread: 1/4-18 NPT
• Air Inlet Outside Thread: 3/4 16 UNF
• Body Diameter: 10.62 in.
• Bottom Plate Alignment: Parallel
• Bottom Plate Diameter: 10.62 in.
• Bottom Plate Stud: 1/2-13 UNC
• Mounting Stud Configuration – Bottom: 1
• Mounting Stud Configuration – Top: 2
• Piston Height: 6.91 in.
• Piston Material Type: Aluminum
• Top Plate Diameter: 9.00 in.
• Top Plate Stud: 1/2-13 UNC
• Air Spring Type: 1T Reversible Sleeve
• Collapsed Length: 8.75 in.
• Extended Length: 23.00 in.
• Net Weight: 17.20 lb.

Intended Application

• Compatible with Freightliner (Cascadia, Century Class, Coronado, Columbia) AirLiner II (Rear Suspension).

Cross-references

• 1613840000, 1614004000, 1616773000, 1619466000, 1R12-603, 1R12603, 3529780, 566CT64266, 566CT68207, 64266, 6813200017, 910S16A382, A1614004000, AB1DF239781, AB1DF23A999, AS9781, EAS9781, FS9781, MAF9781, W013589781, W013778536, W013779780, 16-13810-000, 16-15595-000, 16-19465-000, 16-19466-000, 16-19769-000, 1613810000, 1615595000, 1619465000, 1619769000, 1DF23-9781, 1DF239781, 1R12-1064, 1R121064, 332441, 449780, 6363, 85101151, AS8382, AS9780A, MAF9781B, N32-0197811, N3201978
