Description
Specifications
- Product Line: Brakes
- Category Name: Air Brake Valves

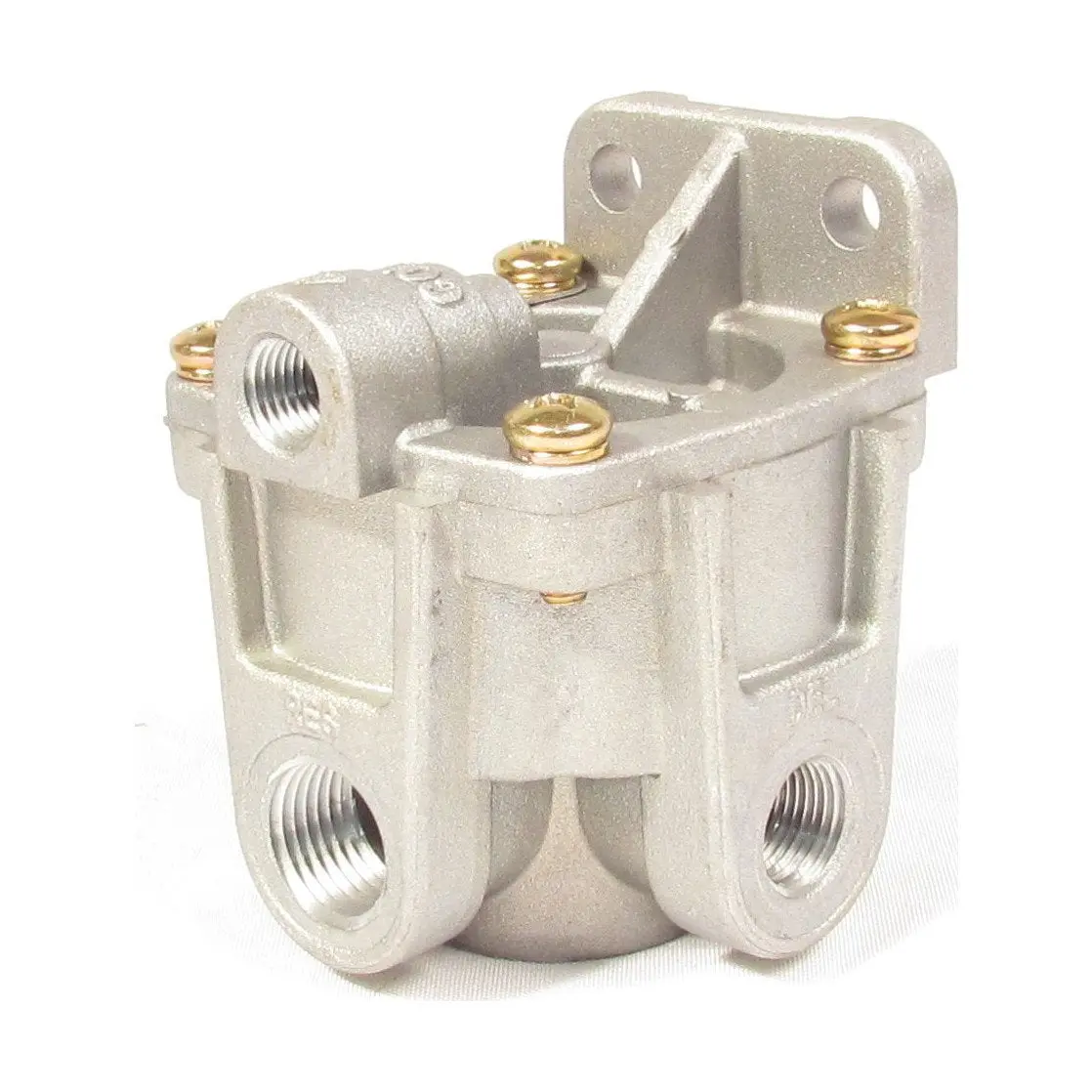

- Part Type: Relay Valve
- Model: RG2
- OEM Part Number: KN28510
- Application Type: Semi-Trucks, Heavy Duty Trucks
- Compatible Repair Kit Part Number: F224643
- Control Port Size: 1/4-18 NPT
- Delivery Port Qty: 2
- Delivery Port Size: 3/8-18 NPT
- Mounting Hole Qty: 2
- Mounting Hole Size: 0.34 in.
- Supply Port Size: 3/8-18 NPT, 1/2-14 NPT
- Supply Port Qty: 2
- Material: Die-cast Aluminum
- Control Port Orientation: 90 deg.
- Crack Pressure: 6.0 psi
- Maximum Operating Temperature: 200 deg. F (93 deg. C)
- Minimum Operating Temperature: -40 deg. F (-40 deg. C)
- Net Weight: 1.35 lb.
Intended Application
- Air brake systems for heavy vehicles: Fast relay used to apply and release service brakes on tractor or trailer.
Cross-references
- 170.KN28510, 170KN28510, 3081425, 5396-KN28510, 5396KN28510, 8235-RKN28510, 8235RKN28510, EM36120, EMDKN28510N, KN28510, KN28510X, LRV-3612, LRV3612, R955KN28510N, RKN28510, TDA-R955KN28510N, TDAR955KN28510N, WABWKN28510, ZZKN28510X
