Description
Specifications
- Product Line: Brakes
- Category Name: Air Brake Valves

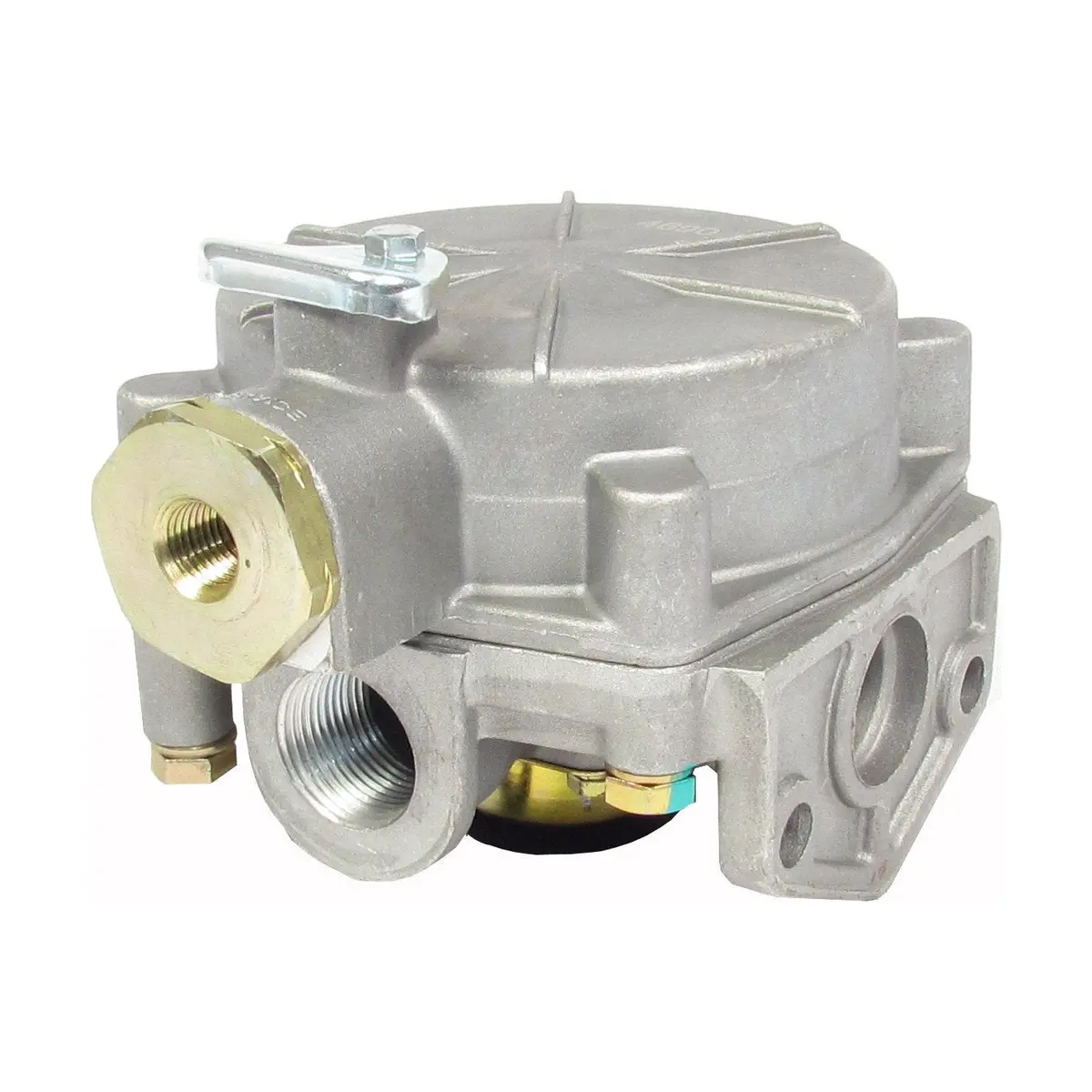

- Part Type: Relay Valve
- Model: R-8
- OEM Part Number: 286370
- Application Type: Semi-Trucks, Heavy Duty Trucks
- Balance Port Size: 1/8-27 NPT
- Compatible Repair Kit Part Number: F224641
- Delivery Port Qty: 3
- Delivery Port Size: 1/4-18 NPT, 1/2-14 NPT
- Exhaust Port Size: Dust Shield
- Mounting Hole Qty: 2
- Mounting Hole Size: 0.41 in.
- Service Port Size: 1/4-18 NPT
- Supply Port Size: 3/4-14 NPT
- Supply Port Qty: 2
- Material: Die-cast Aluminum
- Crack Pressure: 3.0 psi
- Maximum Operating Temperature: 200 deg. F (93 deg. C)
- Minimum Operating Temperature: -40 deg. F (-40 deg. C)
- Service Port Orientation: 90 deg.
- Net Weight: 3.14 lb.
Intended Application
- For air brake systems of trucks, trailers and buses.
- Ideal for systems with spring brakes, where the anti-compounding function is crucial to avoid double brake application problems.
- Improves the efficiency of the brake system in heavy-duty and commercial vehicles.
Cross-references
- 1676729C1, 170286370, 286370, 286370N, 286370RX, 286370X, 745-286370N, 745286370N, EBN286370N, EM56160, R955286370N, RKN28071
