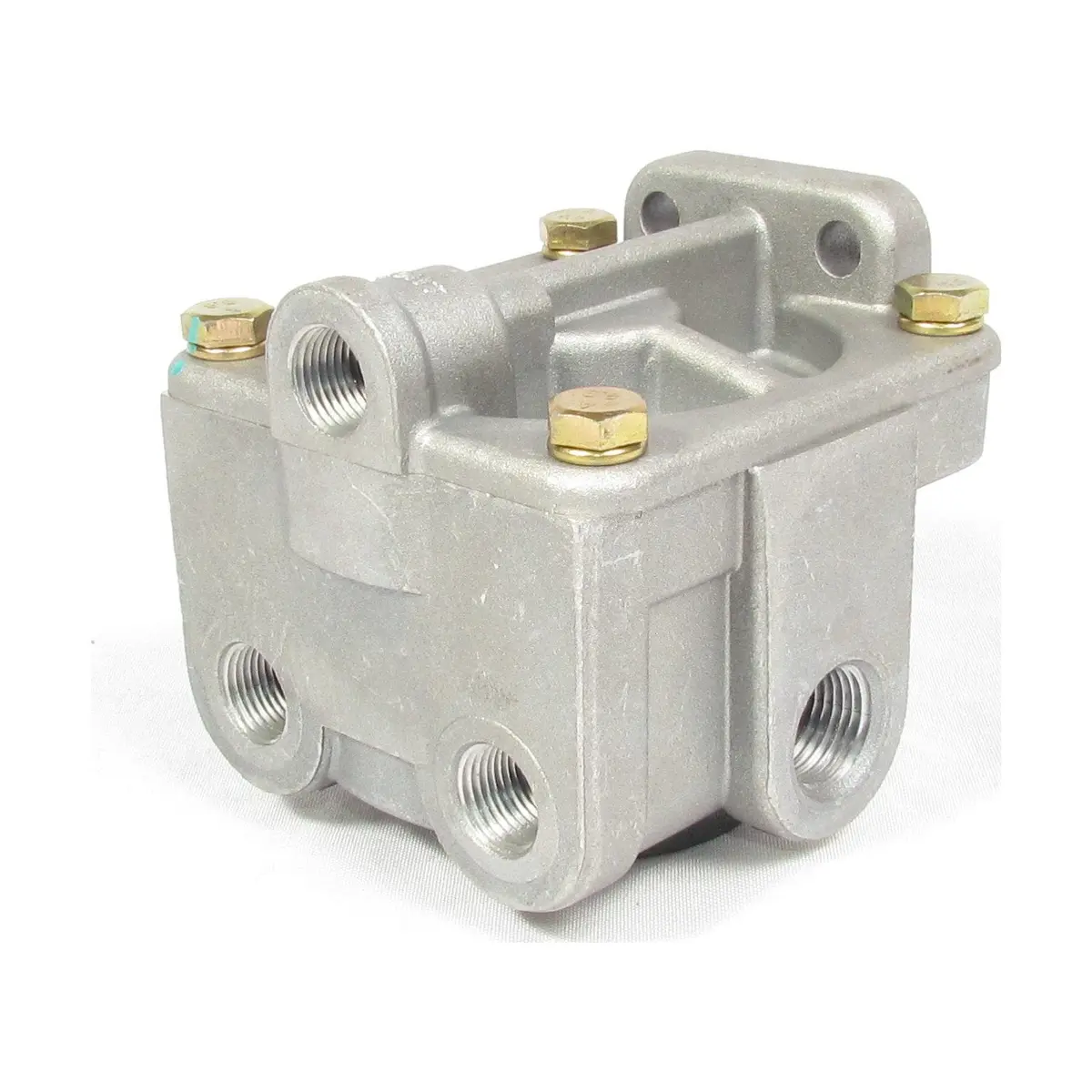

R-5 Dual-Delivery Relay Valve – Air Brake System Component, Replaces Haldex KN28060

Description

Specifications

• Product Line: Brakes
• Category Name: Air Brake Valves
• Part Type: Relay Valve
• Model: R-5
• OEM Part Number: KN28060
• Application Type: Heavy Duty Trucks, Semi-Trucks
• Compatible Repair Kit Part Number: F224640
• Control Port Size: 3/8-18 NPT
• Delivery Port Qty: 2
• Delivery Port Size: 3/8-18 NPT
• Mounting Hole Qty: 1
• Mounting Hole Size: 5/16 in.
• Supply Port Size: 1/2-14 NPT
• Supply Port Qty: 2
• Material: Die-cast Aluminum
• Crack Pressure: 4.6 psi
• Maximum Operating Temperature: 200 deg. F (93 deg. C)
• Minimum Operating Temperature: -40 deg. F (-40 deg. C)
• Net Weight: 3.00 lb.

Intended Application

• Used to apply and release service brakes on tractor or trailer.

Cross-references

• 229467, 455975C92, 5396-KN28060, 5396KN28060, AVKN28060, BEN229467, EM36390, EMDKN28060N, KN28060, KN28060N, KN28060RX, LRV-3639, LRV3639, MAK5396-KN28060, MAK5396KN28060, NAV455975C92, R955KN28060X, RKN28060
