Description
Specifications

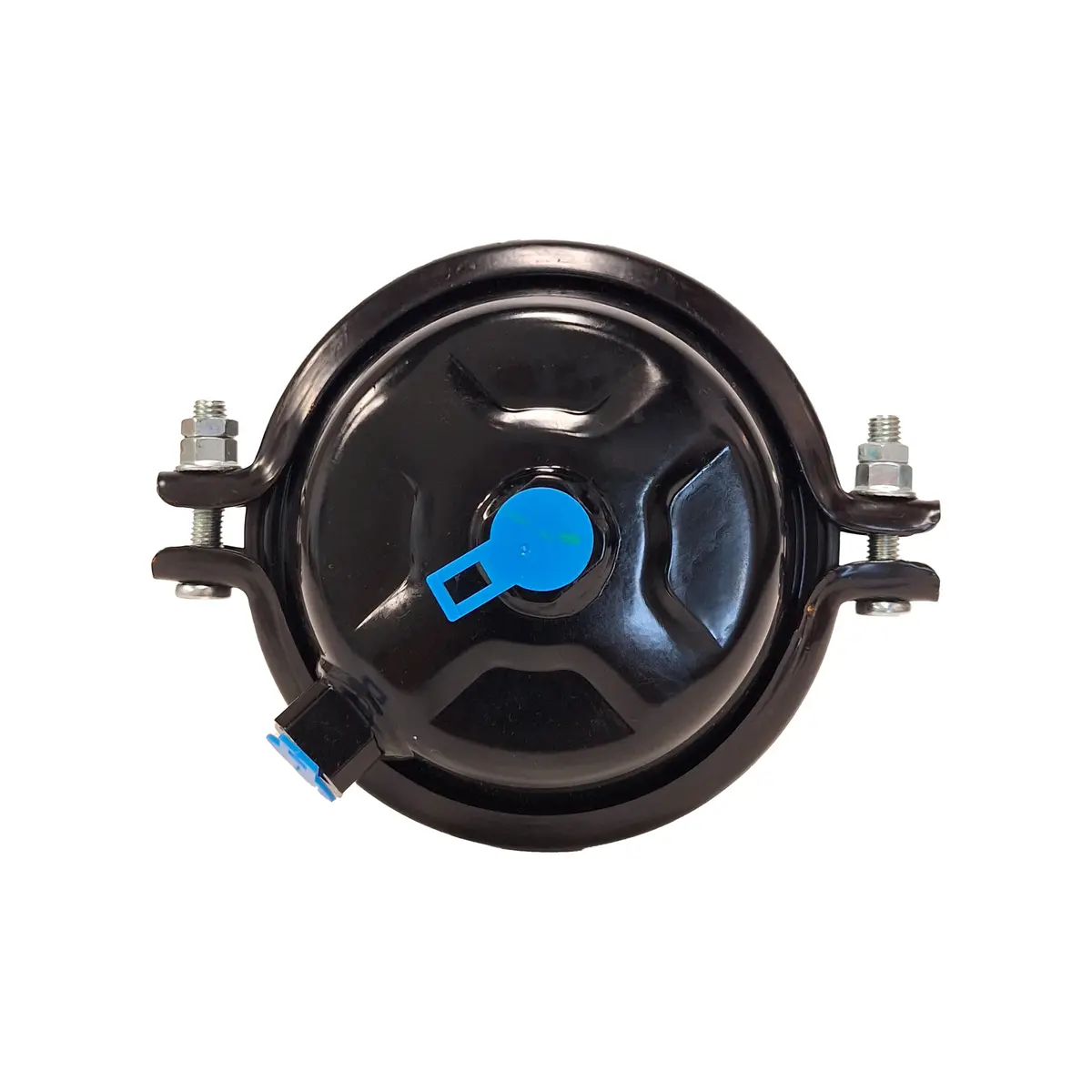

- Part Type: Air Brake Chamber
- Alternate Part Name: Brake Canister / Brake Can / Air Brake Canister
- Model: T16, T-Service 16
- OEM Part Number: 288799
- Application Type: Heavy Duty Trucks, Semi-Trucks
- Brake System Compatibility: S-Cam
- Brake Type: Drum
- Chamber Style: Single Diaphragm
- Chamber Type: Service Brake Chamber
- Clevis Mounting Type: Threaded
- Mounting Bolt Length: 1.50 in. (38.1 MM)
- Mounting Bolt Thread Size: 7/16-20 UNF-2A
- Outside Diameter (O.D.): 4.59 in.
- Push Rod Length: 9 in.
- Push Rod Thread Size: 1/2-20 UNF-2A
- Service Chamber Joint Type: Single Clamp Band
- Service Port Thread Size: 3/8-18 NPTF
- Clevis Yoke: Included
- Maximum Operating Pressure: 150 PSI
- Port Orientation: 90°
- Serviceability: Serviceable
- Stroke Lenght: 2.25 in.
- Stroke Type: Standard Stroke
Cross-references
- 16S, 179.SC16, 179SC16, 288799, 30015, 800823, E-16S, E-BC16S, E16S, EBC16S, R870016, SC16
