Description
Specifications

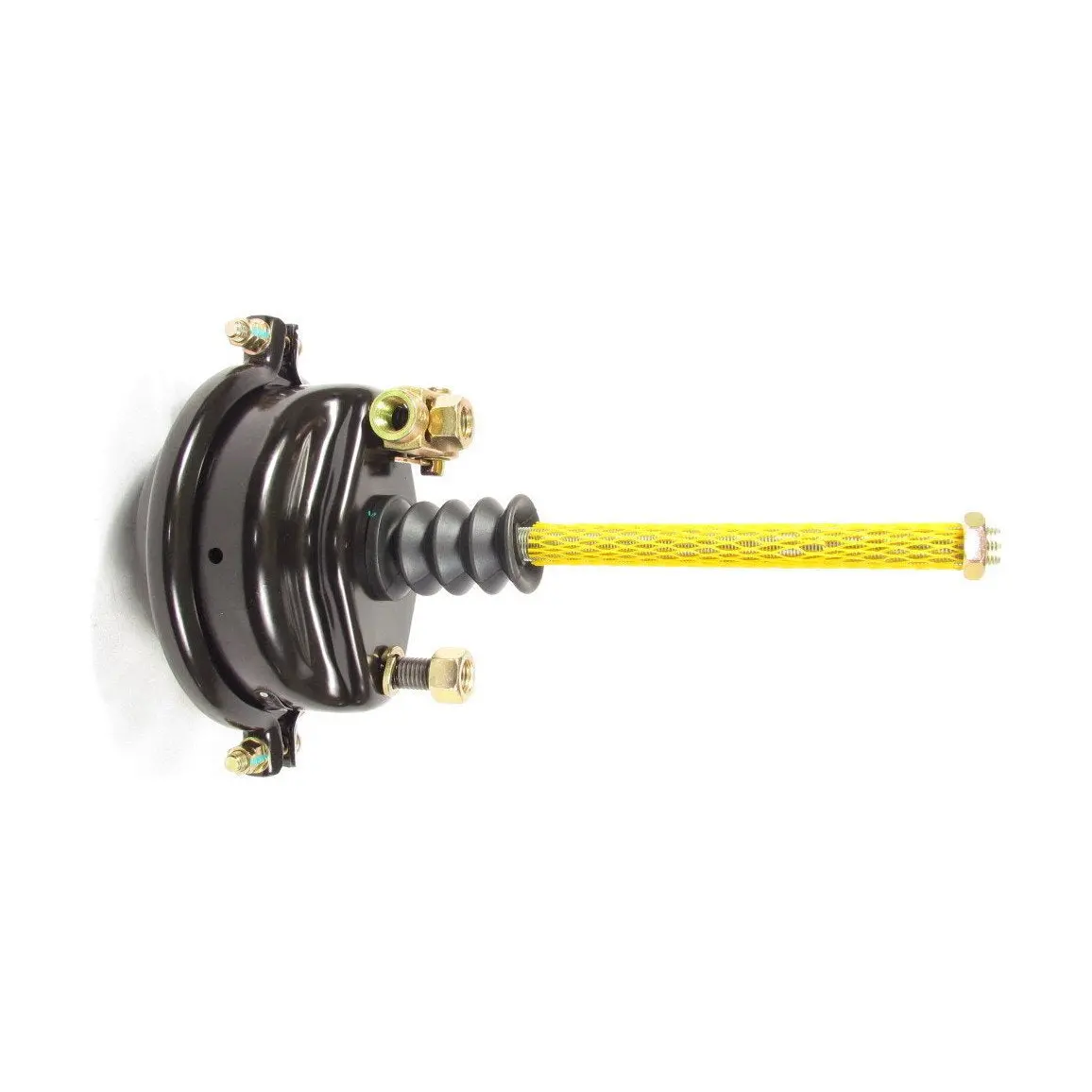

- Part Type: Air Brake Chamber
- Alternate Part Name: Brake Canister / Brake Can / Air Brake Canister
- Model: T24, T-24, 24
- OEM Part Number: 288808
- Application Type: Heavy Duty Trucks, Semi-Trucks
- Brake System Compatibility: S-Cam
- Brake Type: Drum
- Chamber Style: Single Diaphragm
- Chamber Type: Service Brake Chamber
- Clevis Mounting Type: Threaded
- Mounting Bolt Length: 1.44 in. (36.6 MM)
- Mounting Bolt Thread Size: 5/8-18 UNF-2A
- Outside Diameter (O.D.): 7 1/2″
- Push Rod Length: 10.20 in.
- Push Rod Thread Size: 5/8-18 UNF-2A
- Service Chamber Joint Type: Single Clamp Band
- Service Port Thread Size: 3/8-18 NPTF
- Clevis Yoke: Included
- Maximum Operating Pressure: 150 PSI
- Port Orientation: 90°
- Serviceability: Serviceable
- Stroke Lenght: 2.25 in.
- Stroke Type: Standard Stroke
Cross-references
- 179.SC24, 179SC24, 288808, 30019, E-24S, E24S, KN36240, M458, SC24
