Description
Specifications

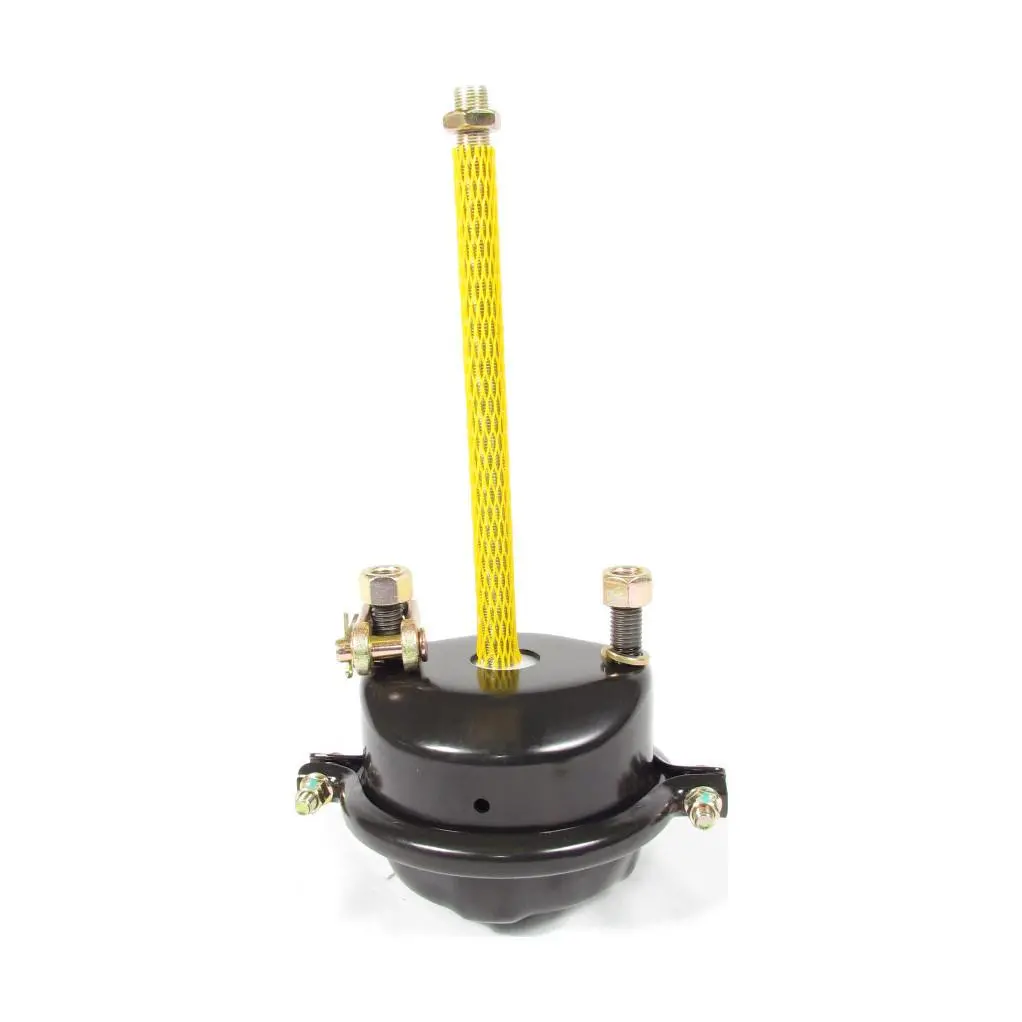

- Part Type: Air Brake Chamber
- Alternate Part Name: Brake Canister / Brake Can / Air Brake Canister
- Model: T20, T-20, 20
- OEM Part Number: 288803
- Application Type: Heavy Duty Trucks, Semi-Trucks
- Brake System Compatibility: S-Cam
- Brake Type: Drum
- Chamber Style: Single Diaphragm
- Chamber Type: Service Brake Chamber
- Clevis Mounting Type: Threaded
- Mounting Bolt Length: 1.44 in. (36.6 MM)
- Mounting Bolt Thread Size: 5/8-18 UNF-2A
- Outside Diameter (O.D.): 7 in.
- Push Rod Length: 10.50 in.
- Push Rod Thread Size: 5/8-18 UNF-2A
- Service Chamber Joint Type: Single Clamp Band
- Service Port Thread Size: 3/8-18 NPTF
- Clevis Yoke: Included
- Maximum Operating Pressure: 150 PSI
- Port Orientation: 90°
- Serviceability: Serviceable
- Stroke Lenght: 2.25 in.
- Stroke Type: Standard Stroke
Cross-references
- 179.SC20, 179SC20, 20S, 288803, 30017, E-20S, E-BC20S, E20S, EBC20S, KN36200, R870020, SC20
