Torque Rod with Integrated Bushing – Fits 3548381C1, 60218-000, 4C4Z4612AA

Description

Specifications

• Product Line: Suspension
• Category Name: Chassis & Suspension
• Part Type: Rigid Torque Rod
• Alternate Part Name: Torque Rod, Torque Rod Assy, Torque Arm Rigid, Torque Arm with Bushings
• OEM Part Number: 3548381C1
• Applicable Bushing: F317261
• Application Type: Semi-Trucks, Heavy Duty Trucks
• Bolt Hole Diameter: 5/8 in.
• Mounting Position: Rear Suspension
• Torque Rod Style: Rigid
• Material: Forged Steel

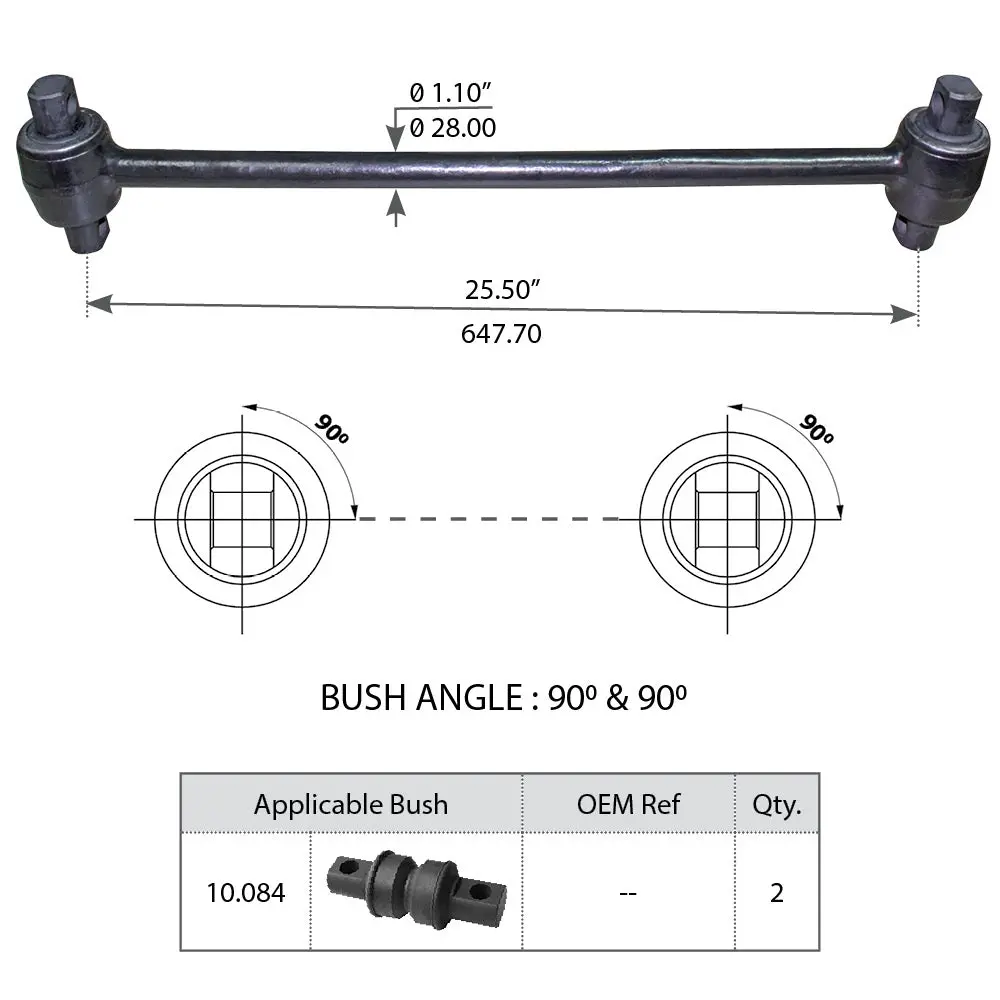

• Bushing Orientation Angle – End 1: 90 deg.
• Bushing Orientation Angle – End 2: 90 deg.
• Bushing Type: Straddle/Bar Pin
• Center Bar Outside Diameter (O.D.): 1-1/8 in.
• Distance Between Bolt Holes: 25-1/2 in.
• Net Weight: 13.49 lb.

Bill Of Material

• Torque Rod pcs x 1
• Torque Rod Bush pcs x 2

Intended Application

• Compatible with International Navistar Rear Suspension – New Corporate Air IROS, 3.5 in. Air Spring, “Z” Beam Configuration, Series Trucks; Compatible with Hendrickson Air Suspension – Single and Tandem Axle, HAS 120, 150, 190, 210, 230, 360, 400, 402, 40LH, 460; Hendrickson RT / RTE Series Air Suspension – Models 380, 400, 440, 460;
• Hendrickson RT2 / RTE2 Series Air Suspension – Models 400, 460, Series Trucks.
• Always compare with your OEM part number prior to purchase to confirm full compatibility.

Cross-references

• 345-904, 345904, 3548381C1, 3580088C1, 3580088C2, 4C4Z4612AA, 501565C2, 60218-000, 60218000, TMR533
