Specifications
- Product Line: Suspension
- Category Name: Air Springs and Bags
- Part Type: Rolling Lobe Air Spring
- Alternate Part Name: Air Bag Suspension, Suspension Air Bag, Pneumatic Spring, Air Ride Spring, Rolling Lobe Air Spring, Reversible Sleeve Air Spring, Air Suspension Bag
- OEM Part Number: W01-358-8729
- Application Type: Heavy Duty Trucks, Semi-Trucks
- VMRS Code: 016-008-000
- Material: Fiber reinforced rubber bellows
- Air Inlet Inside Thread: 1/4-18 NPT
- Air Inlet Outside Thread: 3/4 16 UNF

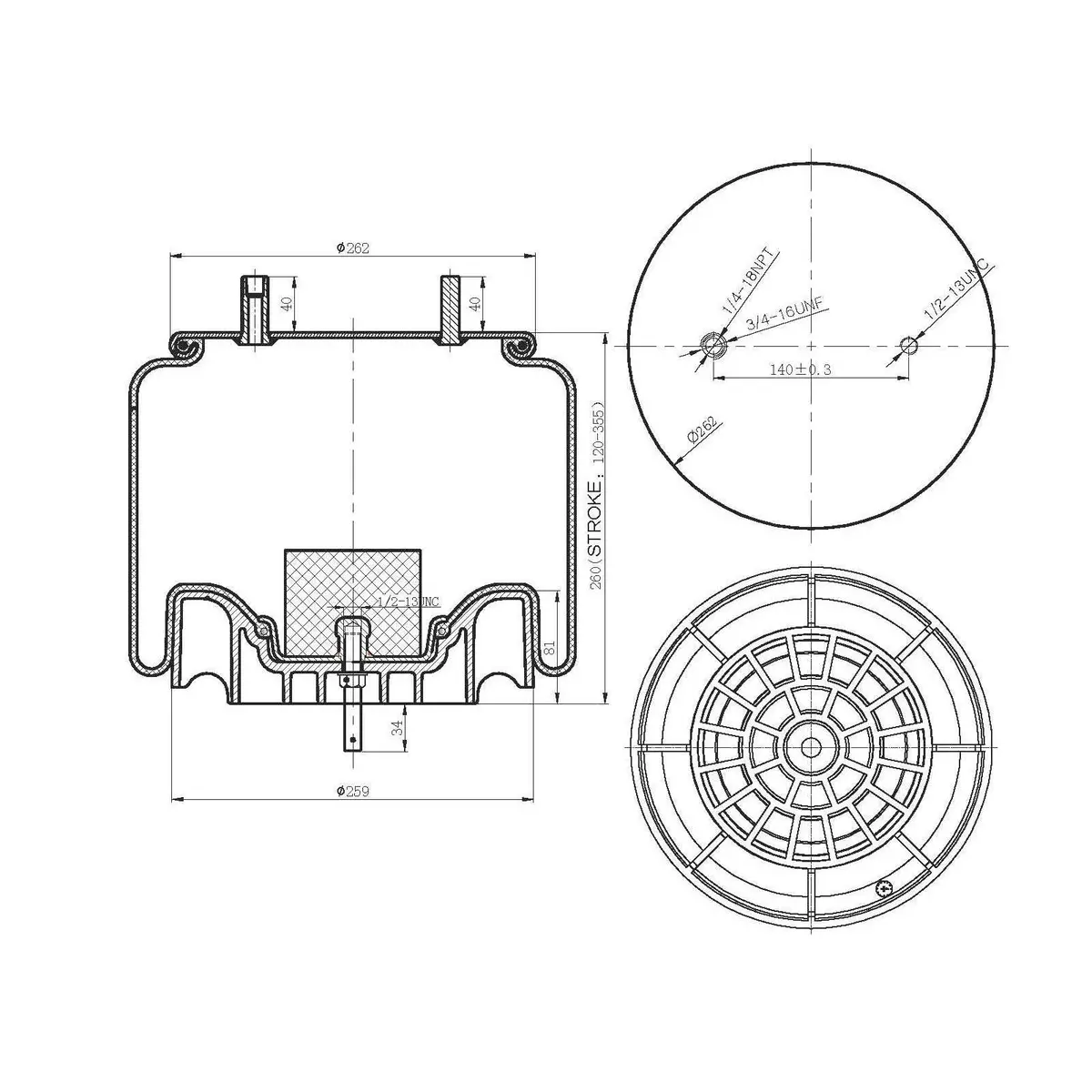

- Body Diameter: 10.12 in.
- Bottom Plate Alignment: Parallel
- Bottom Plate Diameter: 10.00 in.
- Bottom Plate Stud: 1/2-13 UNC
- Mounting Stud Configuration – Bottom: 1
- Mounting Stud Configuration – Top: 2
- Piston Height: 3.20 in.
- Piston Material Type: Composite
- Top Plate Diameter: 10.30 in.
- Top Plate Stud: 1/2-13 UNC
- Air Spring Type: 1T Reversible Sleeve
- Collapsed Length: 4.60 in.
- Extended Length: 13.00 in.
- Net Weight: 16.50 lb.
Intended Application
- Compatible with Meritor Ride Sentry MPA Series (Rear Air Suspension System)
Cross-references
- 1010B13S513, 1R13130, 566CT77963, 566ER8729, 77963, 8729, AB1DK25D8729, AB1DK28C8617, AS8729, FAS-0579, FAS0579, FS8729, LB8729, W013588729, W01-358-8729
