Fortpro Double-Convoluted Air Spring – Compatible with 554787C1 and 2B12-307 (Model F245645)

Description

Specifications

• Product Line: Suspension
• Category Name: Air Springs and Bags
• Part Type: Double Convoluted Air Spring
• Alternate Part Name: Rubber Bellows Air Suspension Bag, Double Bellow Air Spring, Heavy Duty Suspension Air Bag, Trailer Suspension Air Spring, Double Convolution Air Bag, Double Convoluted Air Spring
• OEM Part Number: W01-358-7403
• Application Type: Semi-Trucks, Heavy Duty Trucks
• VMRS Code: 016-008-000
• Material: Fiber reinforced rubber bellows

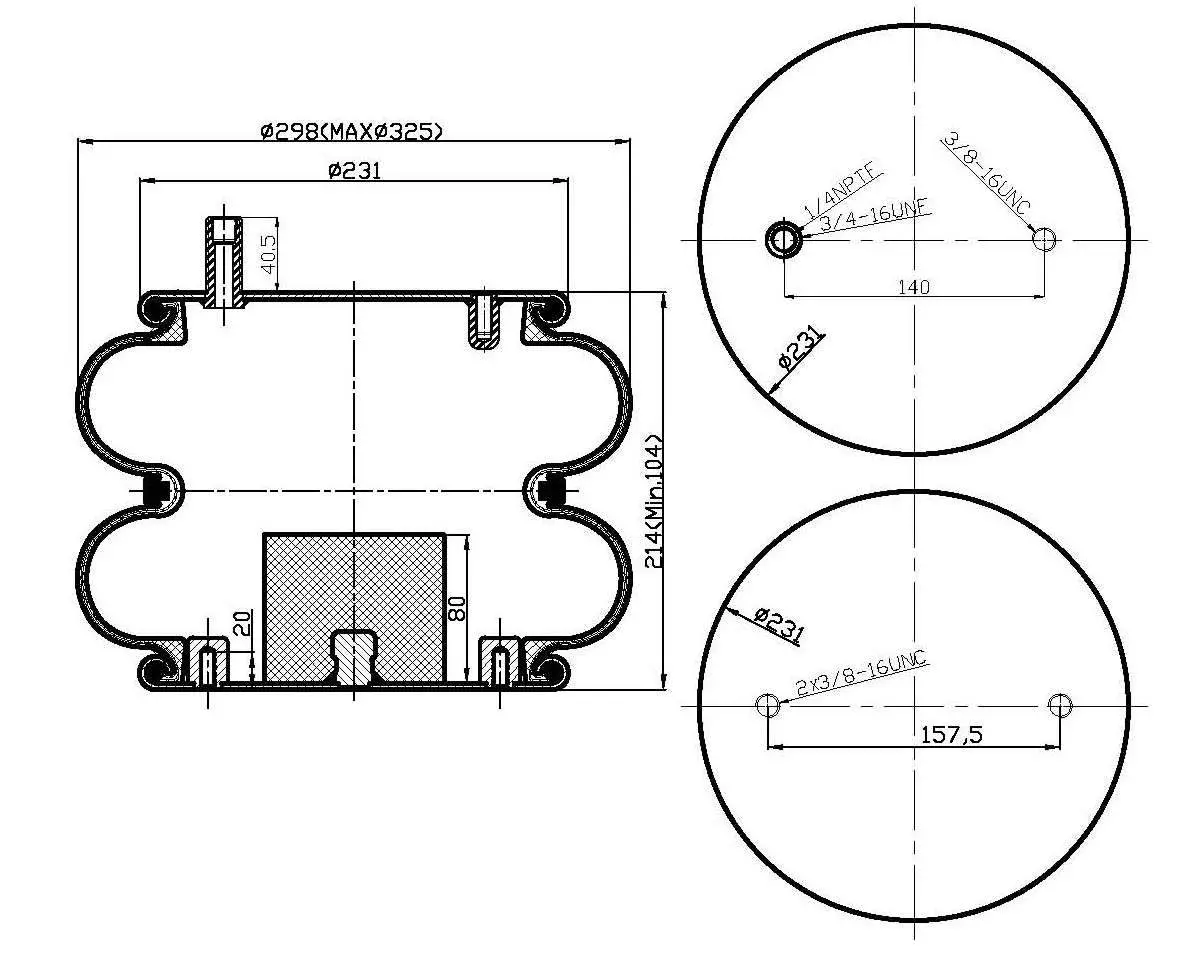

• Body Diameter: 12.00 in.
• Bottom Plate Alignment: Parallel
• Bottom Plate C To C Diameter: 6.20 in.
• Bottom Plate Diameter: 9.00 in.
• Bottom Plate Hole Size: 3/8-16 UNC
• Bottom Plate Stud Qty: 2
• Top Plate Air Inlet: 1/4-18 NPTF
• Top Plate Air Inlet Stud: 3/4-16 UNC
• Top Plate C To C Diameter: 5.50 in.
• Top Plate Diameter: 9.00 in.
• Top Plate Stud Qty: 2
• Top Plate Stud Thread Size: 3/8-16 UNC
• Air Spring Type: Double Convoluted
• Collapsed Length: 3.80 in.
• Extended Length: 10.90 in.
• Net Weight: 14.00 lb.

Intended Application

• Compatible with trailers equipped with Hendrickson, Ridewell, and Navistar Double-Convoluted Air Suspension Systems for Rear and Auxiliary Axles.

Cross-references

• 1003587403C, 1159, 22, 2725, 2B10307, 2B12307, 2B12433, 2B12445, 3057007403, 352035001, 3547403, 365141, 4318, 566CT64488, 57007403, 64488, 7403, 7405, ABSP2B22R7403, AS0007, AS7403, B1159, B2883, CS212307, FAS-0714, FAS0714, FD33022318, FS7403, GY2B12307, M3507, NA1060, S1159, S4302C, W013587403, MAF7403, W01-358-7403
