Description
Specifications
- Product Line: Suspension
- Category Name: Air Springs and Bags
- Part Type: Double Convoluted Air Spring
- Alternate Part Name: Double Convoluted Air Spring, Double Convolution Air Bag, Double Bellow Air Spring, Heavy Duty Suspension Air Bag, Trailer Suspension Air Spring, Rubber Bellows Air Suspension Bag
- OEM Part Number: W01-358-7135
- Application Type: Heavy Duty Trucks, Semi-Trucks
- VMRS Code: 016-008-000
- Material: Fiber reinforced rubber bellows

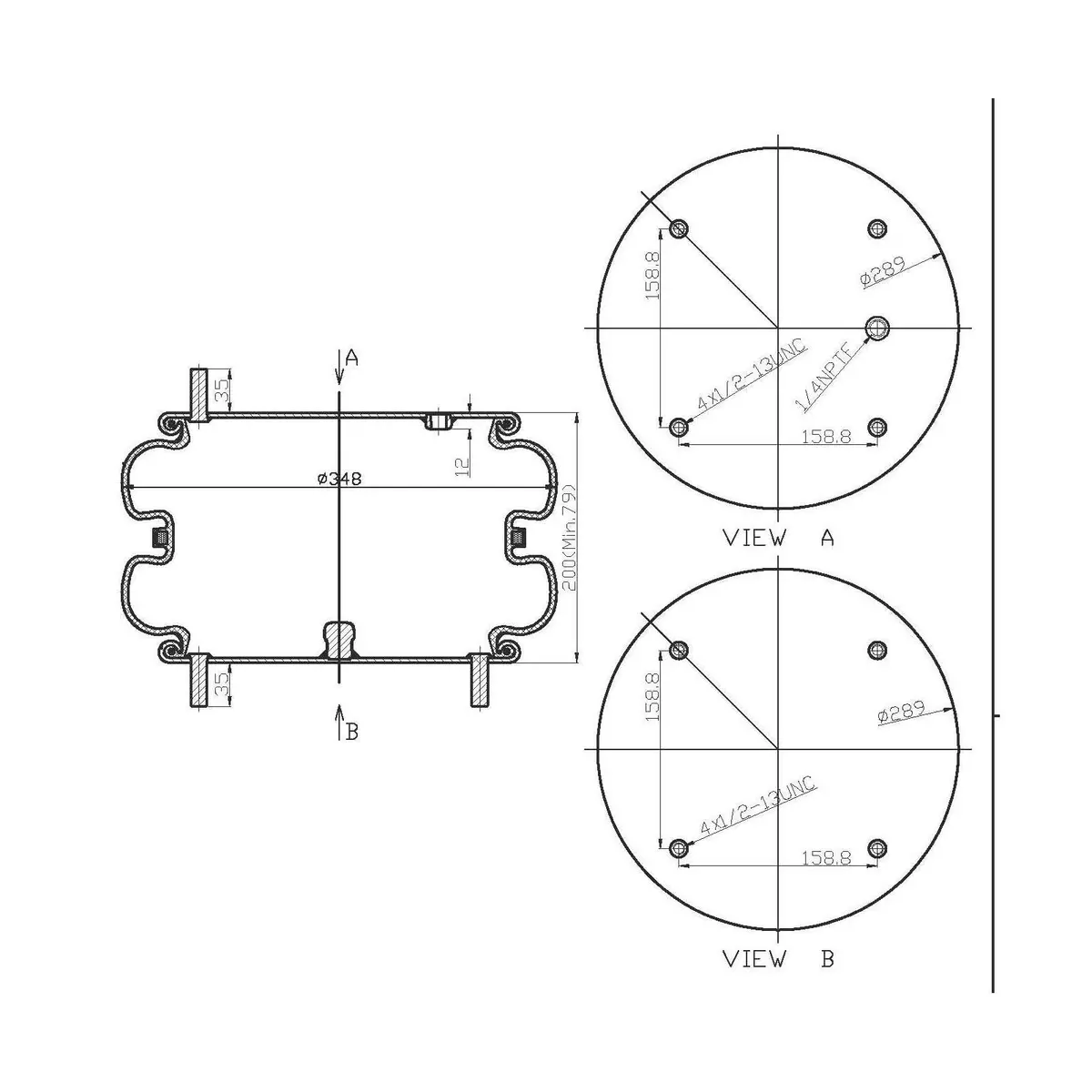

- Body Diameter: 14.50 in.
- Bottom Mounting Stud Size: 1/2-13 UNC
- Bottom Plate Alignment: Parallel
- Bottom Plate C To C Diameter: 8.84 in.
- Bottom Plate Diameter: 11.30 in.
- Bottom Plate Stud Qty: 4
- Top Plate Air Inlet: 1/4-18 NPTF
- Top Plate C To C Diameter: 6.25 in.
- Top Plate Diameter: 11.30 in.
- Top Plate Stud Qty: 4
- Top Plate Stud Thread Size: 1/2-13 UNC
- Air Spring Type: Double Convoluted
- Collapsed Length: 3.70 in.
- Extended Length: 11.30 in.
- Net Weight: 19.55 lb.
Intended Application
- Compatible with Hendrickson HAS230, HAS400, HT250 and HT300 suspension systems, installed on Freightliner, Kenworth, Peterbilt, Volvo, Mack and Western Star vehicles.
Cross-references
- 1003587135C, 2B14360, 3090557001, 3130501, 3547135, 566CT64543, 57007135, 57QL46, 64543, 7135, 90557001, AB2B14360, ABSP2B34R7135, AR21A, AS7135, CS214360, FAS-0739, FAS0739, FD53022311, FS7135, GY2B14360, M3502, MNW90557001S, S13034, S1326C, W013587135, 2B14-360, 4311, 566ER7135, AS4311, MAF7135, W01-358-7135
