Fortpro Double-Convoluted Air Spring – Fits 6897 and 2B9-229 (Model F245644)

Description

Specifications

• Product Line: Suspension
• Category Name: Air Springs and Bags
• Part Type: Double Convoluted Air Spring
• Alternate Part Name: Trailer Suspension Air Spring, Rubber Bellows Air Suspension Bag, Double Bellow Air Spring, Heavy Duty Suspension Air Bag, Double Convoluted Air Spring, Double Convolution Air Bag
• OEM Part Number: W01-358-6897
• Application Type: Semi-Trucks, Heavy Duty Trucks
• VMRS Code: 016-008-000
• Material: Fiber reinforced rubber bellows

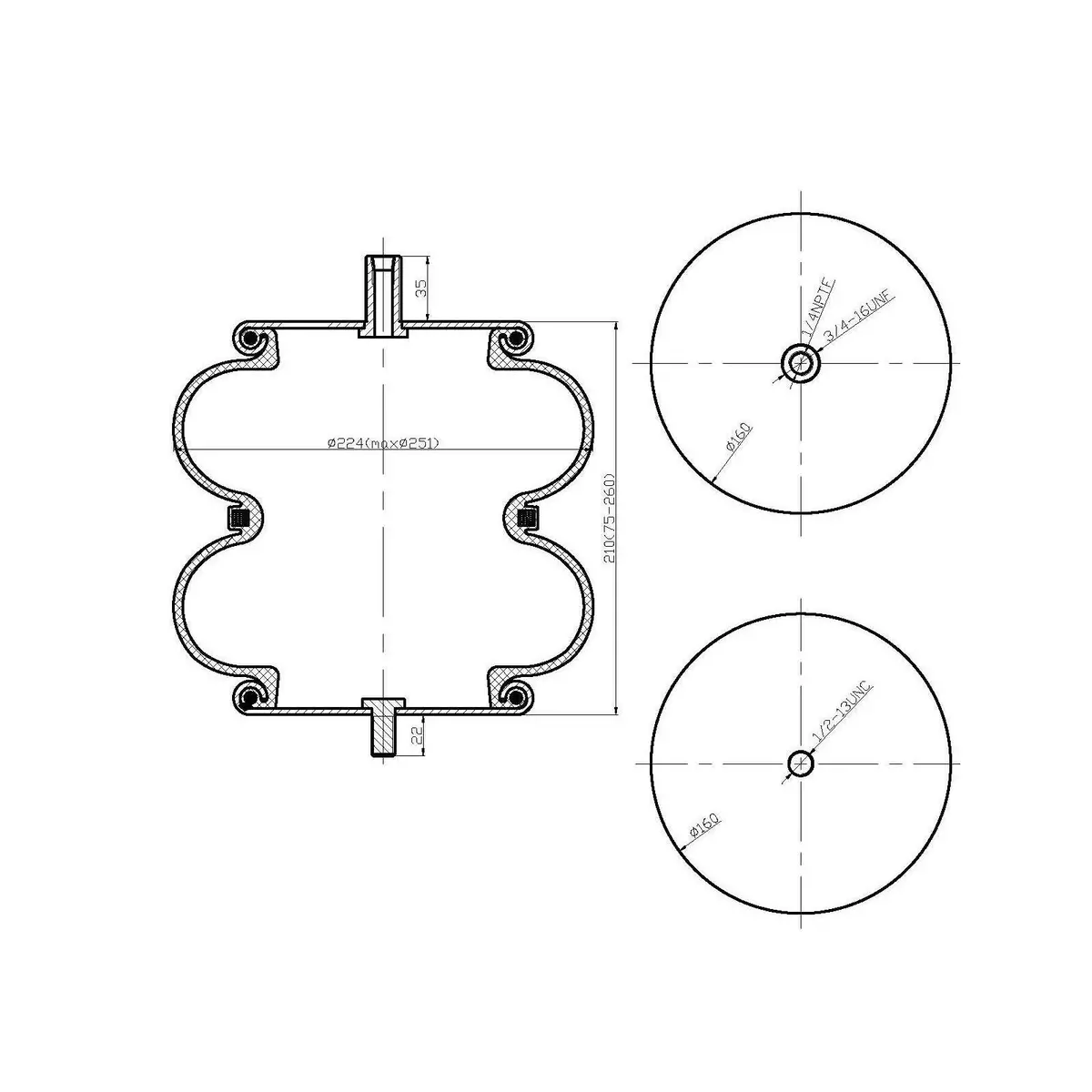

• Body Diameter: 8.88 in.
• Bottom Plate Alignment: Parallel
• Bottom Plate Diameter: 6.40 in.
• Bottom Plate Hole Size: 1/2-13 UNC
• Bottom Plate Stud Qty: 1
• Top Plate Air Inlet: 1/4-18 NPTF
• Top Plate Air Inlet Stud: 3/4-16 UNC
• Top Plate Diameter: 6.40 in.
• Top Plate Stud Qty: 1
• Air Spring Type: Double Convoluted
• Collapsed Length: 3.20 in.
• Extended Length: 10.30 in.
• Net Weight: 8.30 lb.

Intended Application

• Compatible with trailers Air Suspension Systems for Lift or Auxiliary Axles.

Cross-references

• 1003586897C, 2B09229, 2B9228, 2B9229, 2B9494, 3546897, 566CT64517, 57006897, 64517, 6897, ABSP2B12R6897, AS0058, AS0058S, AS6897, FAS-0717, FAS0717, FD20019310, FD20019505, FS6897, M3528, W013586897, 2B9-229, 4706, 566ER6897, AS4505, MAF6897, W01-358-6897
